Installation
Hazardous areas Zone 1 / 2 (Gas) - Zone 21 / 22 (Dust)
ATEX
II 2G Ex db eb mb IIC T6...T5 Gb (Lens Type)
II 2D Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No SGS25ATEX0003X
IECEx
Ex db eb mb IIC T6...T5 Gb (Lens Type)
Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No IECEx SGS 25 .0003X
Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7
EN/IEC 60079-18; EN/IEC 60079-31.

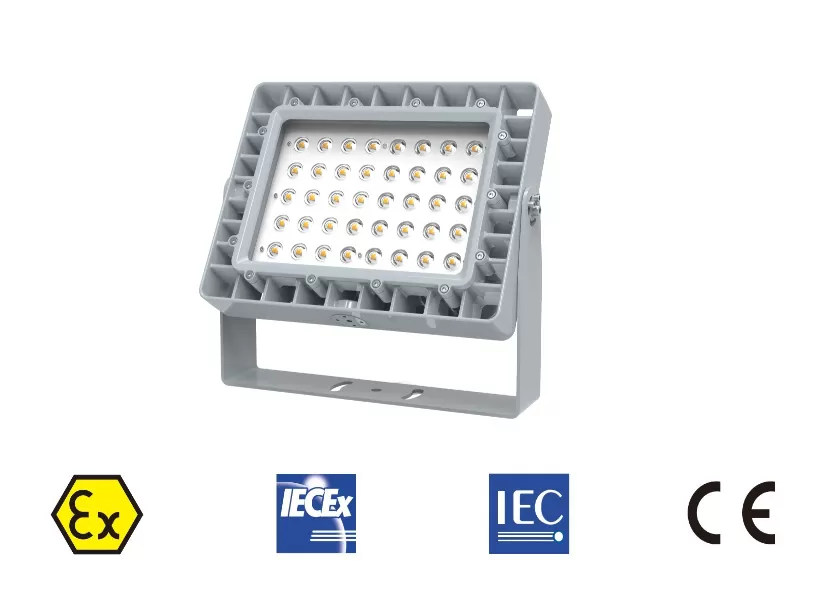

Powerful Lighting: The EX05 series explosion-proof LED flood lights from SAFER-Ex are engineered to provide powerful illumination, ensuring optimal visibility in hazardous environments.
Heavy-Duty Housing: Featuring a robust and heavy-duty housing, these lights are built to withstand harsh industrial conditions, offering durability and longevity in demanding settings.
Energy Efficiency: With their energy-efficient design, the EX05 series flood lights offer significant energy savings, reducing operational costs while maintaining high performance.
Resistance to Vibration and Impact: The solid-state design of the EX05 series enhances its resistance to vibration and impact, ensuring reliable operation even in rugged environments.
Reliable Performance: Designed with reliability in mind, the EX05 series flood lights deliver consistent and dependable performance, making them an ideal choice for industrial applications requiring powerful and durable lighting solutions.
| Rated Power | 150W | 200W | ||||||||||||
| Light efficacy | 151lm/W | 151lm/W | ||||||||||||
| Luminous Flux | 22650lm | 30200lm | ||||||||||||
| Fixture Weight | 10.5kg | 11.2kg | ||||||||||||
| Type of Protection | Exdbebmb(Flameproof,IncreasedSafety,Encapsulation) Extb(DustProtectedEnclosure) | |||||||||||||
| ATEX Classification | GroupII Category 2 GD | |||||||||||||
| Certificate | EU Type Examination Certificate SGS25ATEX0006X IECEx Certificate of Conformity IECExSGS25 .0003X | |||||||||||||
| Coding | Ex db eb mb IICT6...T5 Gb Ex tb IIICT80°C...T95°C Db IP66 Refer to table forTrating and Ambient | |||||||||||||
| Enclosure | CopperfreeDie-Castinga luminum with epoxy powder coating finished(RAL 7040) | |||||||||||||
| Protective Cover | Tempered Glass/Polycarbonate | |||||||||||||
| Entry | 2 cable entries(NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Electronic Driverion | 60°,90°,140° | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Back access to gearbox lid with M5 captive screws | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | |||||||||||||
| Temperature Classification | T5(-40°C+55°C)/T6(-40°C+40°C) | T5(-40°C+55°C)/T6(-40°C+40°C) | ||||||||||||

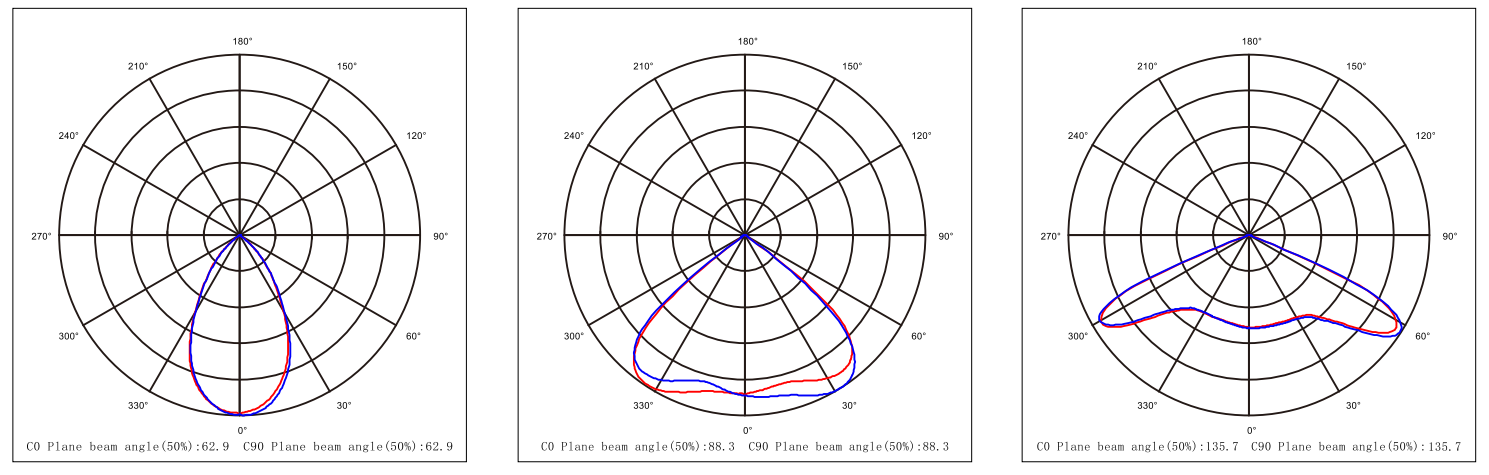

Distribution Curve

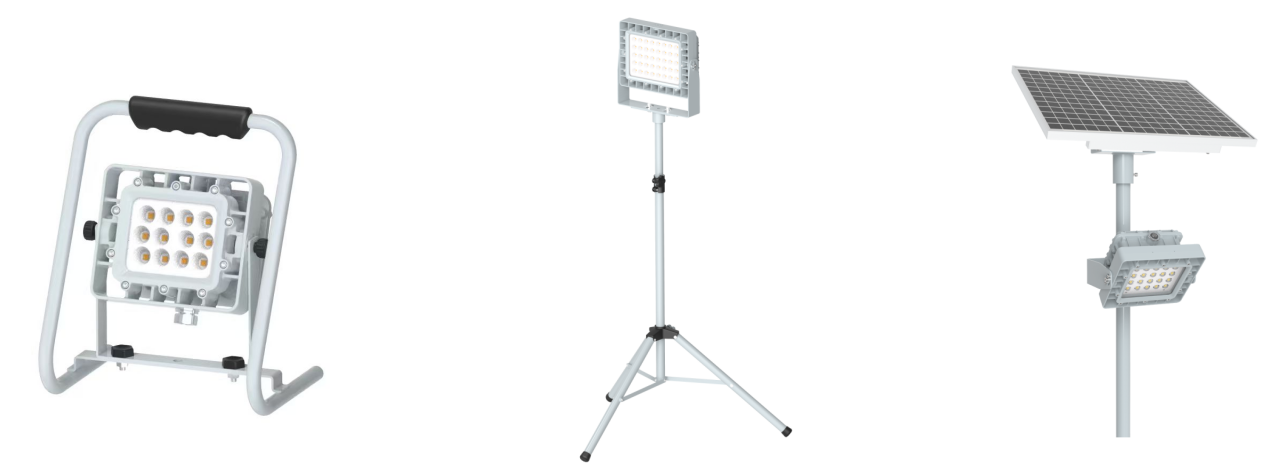

Mounting Options

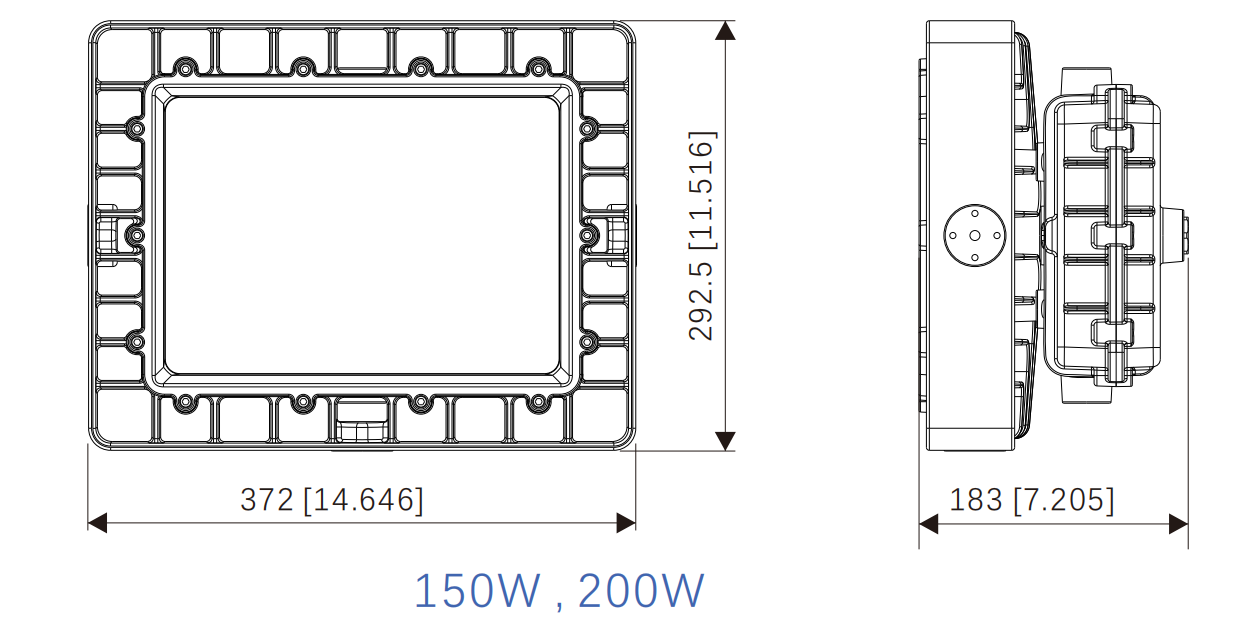

Dimension Diagram
Ordering Information
List of SKU Naming: EX05 -200W -4K -140
| Series | Rated Power | Additional Function Input Voltage | Input Voltage | CCT | Beam Angle | Cable Entries | |||||||||||||||||||||||||||||
| EX05 | ‐150 = 150W | Empty = No Additional Function | L = 12-24Vac | ‐3K = 3000K | - 60 = 60° | N3/4 =NPT3/4 | |||||||||||||||||||||||||||||
| ‐200 = 200W | -MS = Microwave Motion Sensor | E = 100-240Vac | ‐4K = 4000K | - 90 = 90° | G3/4 = G3/4 | ||||||||||||||||||||||||||||||
| -DS=Daylight Sensor | DCL = 12-36Vdc | ‐5K = 5000K | - 140 =140° | N1/2 =NPT1/2 | |||||||||||||||||||||||||||||||
| -DM=Dimmable | DCH= 140-250Vdc | ‐6K = 6000K | G1/2 = G1/2 | ||||||||||||||||||||||||||||||||
| -DL=DALI | M25 = M25 | ||||||||||||||||||||||||||||||||||
| - LR = LoRa | M20 = M20 | ||||||||||||||||||||||||||||||||||
| - GS = GPS | |||||||||||||||||||||||||||||||||||
The EX05 series meets the requirements of Zone 1 and Zone 2 hazardous gas environments and is widely used in flammable and explosive places such as oil platforms, chemical workshops, tunnels, and oil tank areas.
EX05 has the China Explosion-proof Certificate (CNEX), and optional international explosion-proof certifications such as ATEX and IECEx, complying with industrial safety standards in many countries.
It offers a variety of power options from 50W to 200W, with a luminous flux of up to 26000lm, suitable for scenes with different heights and illumination requirements.
It adopts high-strength aluminum alloy die-cast shell, with anti-corrosion coating and tempered glass mask, and the protection level reaches IP66, which is suitable for outdoor and harsh environments.
It supports multiple installation methods such as ceiling, wall, and hanging rod to meet the installation requirements of different working conditions and facilitate the transformation and replacement of traditional lamps.
