Installation
Hazardous areas Zone 1 / 2 (Gas)
Hazardous areas Zone 21 / 22 (Dust)
UL
Class I Division 2 Group A, B, C, D
Class II Division 1 Group E, F, G
Class II Division 2 Group F, G
Class III Division 1 & 2
ATEX
II 2G Ex db eb mb IIC T5 Gb (Lens Type)
II 2D Ex mb tb IIIC T5 Db (Lens Type)
II 3G Ex ec mb IIC T5 Gc (Reflective Type)
II 2D Ex mb tb IIIC T5 Db (Reflective Type)
IECEx
Ex db eb mb IIC T5 Gb (Lens Type)
Ex mb tb IIIC T5 Db (Lens Type)
Ex ec mb IIC T5 Gc (Reflective Type)
Ex mb tb IIIC T5 Db (Reflective Type)
Certificate & Standard
USA: UL 1598, UL 8750,UL 844
Canada: C22.2#250, CSA C22.2#137
EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7
EN/IEC 60079-18; EN/IEC 60079-31

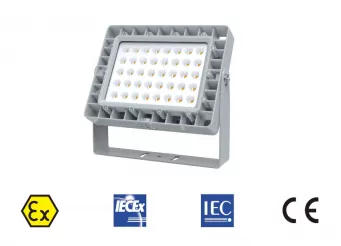

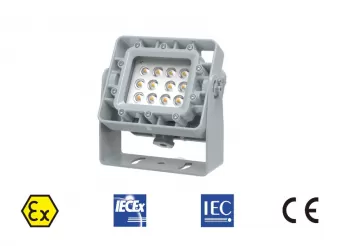

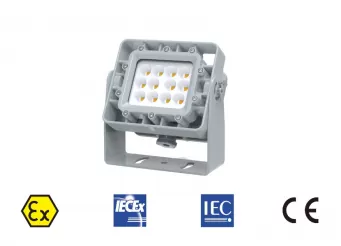

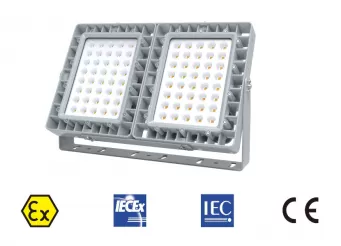

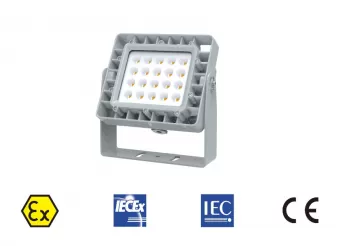

Powerful Illumination: The SP04 series explosion-proof LED flood lights from SAFER-Ex are engineered to deliver powerful lighting, ensuring optimal visibility in hazardous environments.
Heavy-Duty Housing: Featuring a robust and heavy-duty housing, these lights are built to withstand harsh industrial conditions, providing durability and longevity in demanding settings.
Energy Efficiency: With their energy-efficient design, the SP04 series flood lights offer significant energy savings, reducing operational costs while maintaining high performance.
Durability and Resistance: The solid-state design of the SP04 series enhances its durability and resistance to vibration and impact, ensuring reliable operation even in rugged environments.
Reliable Performance: Designed with reliability in mind, the SP04 series flood lights deliver consistent and dependable performance, making them an ideal choice for industrial applications requiring powerful and durable lighting solutions.
| Rated Power | 25W | 50W | 75W | 100W | 150W | |||||||||||||||||||||||||||||
| Light efficacy | 150lm | 150lm | 150lm | 150lm | 150lm | |||||||||||||||||||||||||||||
| Luminous Flux | 3750lm | 7500lm | 11250lm | 15000lm | 22500lm | |||||||||||||||||||||||||||||
| Fixture Weight | 3.2kgs/7.05lbs | 3.2kgs/7.05lbs | 8kgs/17.64lbs | 8kgs/17.64lbs | 8kgs/17.64lbs | |||||||||||||||||||||||||||||
| Input Voltage | 12-24Vac, 100-240Vac, 120-277Vac, 120-347Vac, 277-480Vac, 12-36Vdc, 140-250Vdc for option | |||||||||||||||||||||||||||||||||
| Surge Protection | DM 2KV, CM 10KV/20KV | DM 4KV, CM 10KV/20KV | ||||||||||||||||||||||||||||||||
| Housing Material | Copper free Die-Casting aluminum with expoxy powder coating finished | |||||||||||||||||||||||||||||||||
| Lens Material | Tempered Glass | |||||||||||||||||||||||||||||||||
| Cable Entry | M20, M25, NPT 1/2", NPT3/4", G1/2, G3/4 | |||||||||||||||||||||||||||||||||
| Ingress Protection | IP66 | |||||||||||||||||||||||||||||||||
| Impact Rating | IK10 (20J) | |||||||||||||||||||||||||||||||||
| Ambient Temperature | -40℃ ~+70℃ | |||||||||||||||||||||||||||||||||
| Intelligent Functions | Microwave Motion Sensor / Photocell Sensor / Dimming / DALI for option | |||||||||||||||||||||||||||||||||
| Warranty | 5-year standard warranty | |||||||||||||||||||||||||||||||||
Distribution Curve
Mounting Options
 |  |  |  |  |
| Wall Mounting | 25° Wall Mounting | Trunnion Swivel Mounting | Pendant Mounting | Ceiling Mounting |
Dimension Diagram
Unit: mm [ '' ]
Ordering Information
List of SKU Naming: SP04 -150DCL -3K -90
| Series | Rated Power | Input Voltage | CCT | Beam Angle | ||||||||||||||||||||||||||||||
| SP04 | ‐25 = 25W | L = 12-24Vac | ‐3K = 3000K | ‐60 = 60°(Lens) | ||||||||||||||||||||||||||||||
| ‐50 = 50W | E = 100-240Vac | ‐4K = 4000K | ‐90 = 90°(Lens) | |||||||||||||||||||||||||||||||
| ‐75 = 75W | U = 120-277Vac | ‐5K = 5000K | ‐140 = 140°(Lens) | |||||||||||||||||||||||||||||||
| ‐100 = 100W | UH = 120-347Vac | ‐6K = 6000K | 120° x 80° (Reflective cup) | |||||||||||||||||||||||||||||||
| ‐120 = 120W | H = 277-480Vac | |||||||||||||||||||||||||||||||||
| ‐150 = 150W | DCL = 12-36Vdc | |||||||||||||||||||||||||||||||||
| DCH = 140-250Vdc | ||||||||||||||||||||||||||||||||||
