Installation
Hazardous areas Zone 1 / 2 (Gas) - Zone 21 / 22 (Dust)

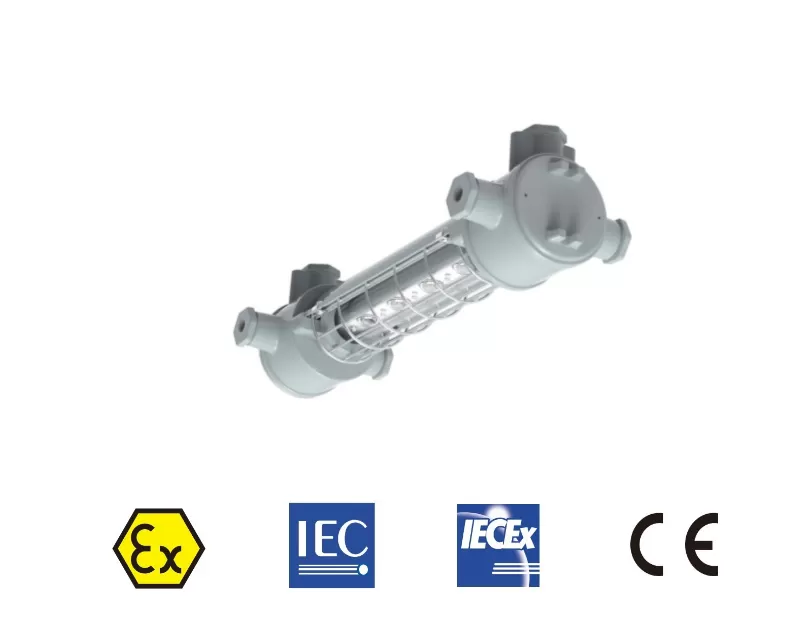

ATEX
II 2G Ex db eb mb IIC T6...T5 Gb (Lens Type)
II 2D Ex tb IIIC T80°C…T95°C Db (Lens Type)
IECEx
Ex db eb mb IIC T6...T5 Gb (Lens Type)
Ex tb IIIC T80°C…T95°C Db (Lens Type)

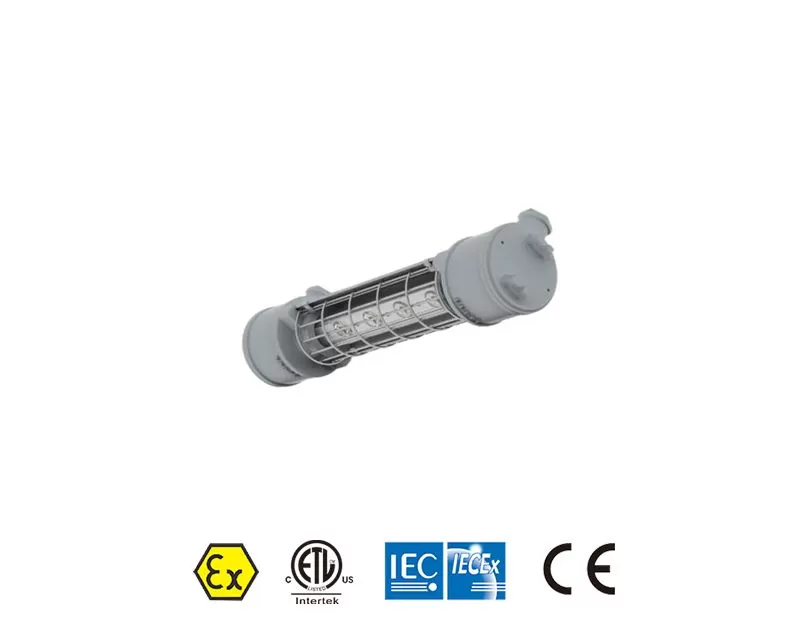

Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1
EN/IEC 60079-7; EN/IEC 60079-18
EN/IEC 60079-31

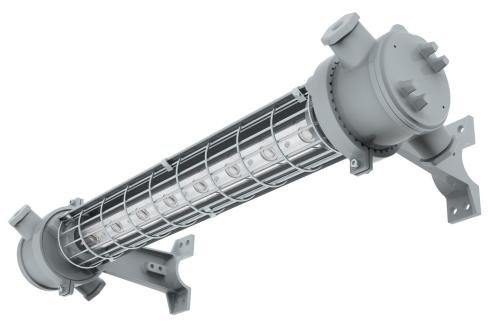

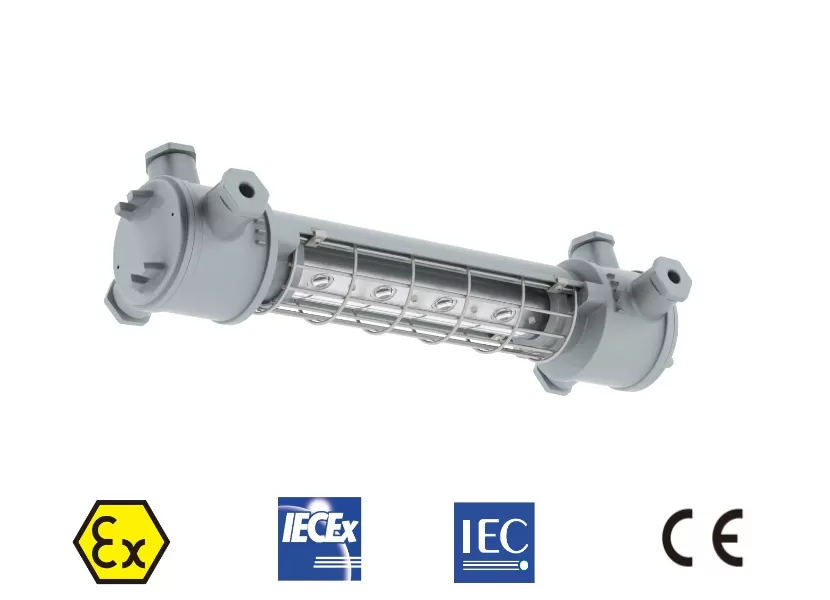

High-Quality Illumination: SAFER-EX's explosion-proof Linear Light delivers an impressive 12000lm of high-quality light output while consuming only 80 watts, ensuring energy efficiency and optimal brightness for industrial applications.

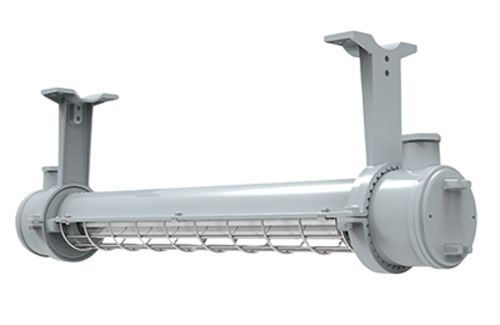

Compact Design: With a width of just 5 inches, the EX04 Linear Light boasts a lightweight and low-profile design, making it one of the most space-efficient explosion-proof lighting fixtures available in the market today.
Versatile Applications: The EX04 Linear Light is an ideal choice for environments with limited space, where low-profile fixtures are essential for safety and functionality. Its compact design makes it suitable for a wide range of industrial applications.
Durable Construction: The LED assembly of the EX04 Linear Light is protected by a tempered borosilicate glass tube and steel wire guard, providing robust protection against accidental damage and ensuring the longevity of the light fixture in hazardous environments.
Enhanced Safety: Designed with safety in mind, the EX04 Linear Light's protective features provide peace of mind for operators, minimizing the risk of accidents and ensuring reliable illumination in challenging industrial settings.
| Rated Power | 20W | 40W | 80W | |||||||||||
| Light efficacy | 154lm/W | 154lm/W | 154lm/W | |||||||||||
| Luminous Flux | 3080lm | 6160m | 12320lm | |||||||||||
| Fixture Weight | 3kg | 3.7kg | 7kg | |||||||||||
| Type of Protection | Ex db eb mb (Flameproof, Increased Safety, Encapsulation) Ex tb (Dust Protected Enclosure) | |||||||||||||
| ATEX Classification | GroupII Category 2 GD | |||||||||||||
| Area Classification | Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 | |||||||||||||
| Certificate | EU Type Examination Certificate SGS24ATEX0150X IECEx Certificate of Conformity IECEx SGS 24.0067X | |||||||||||||
| Coding | Ex db eb mb IIC T6...T5 Gb Ex tb IIIC T80°C...T95°C Db IP66 Refer to table for T rating and Ambient | |||||||||||||
| Enclosure | Copper free Die-Casting aluminum with epoxy powder coating finished (RAL 7040) | |||||||||||||
| Protective Cover | Borosilicate Glass Tube | |||||||||||||
| Entry | 6 cable entries (NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Optical Distribution | 60°,90°,140° | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K， | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Both sides have direct access to the gearbox lid by rotating threads | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | |||||||||||||
| Temperature Classification | T5(-40°C+65°C)/T6(-40°C+50°C) | T5(-40°C+70°C)/T6(-40°C+55°C) | T5(-40°C+60°C)/T6(-40°C+45°C) | |||||||||||
Distribution Curve

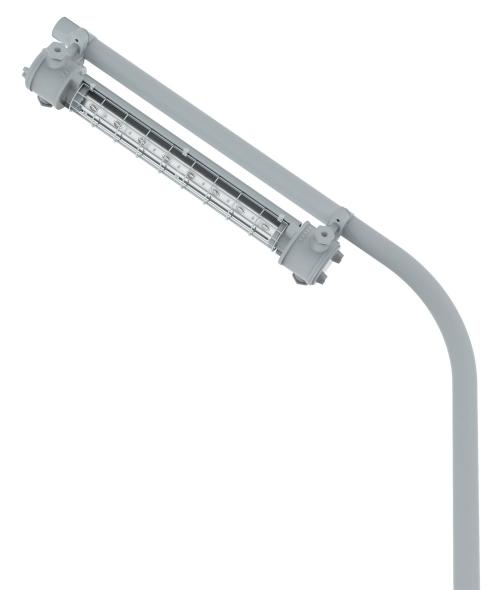

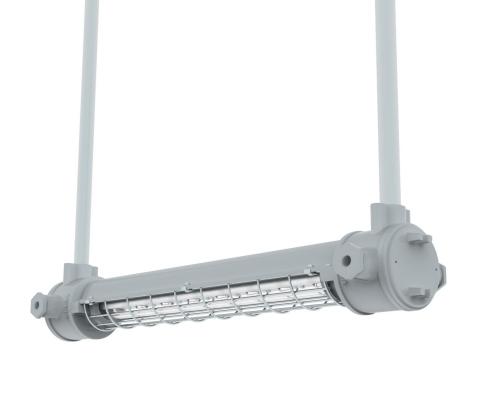

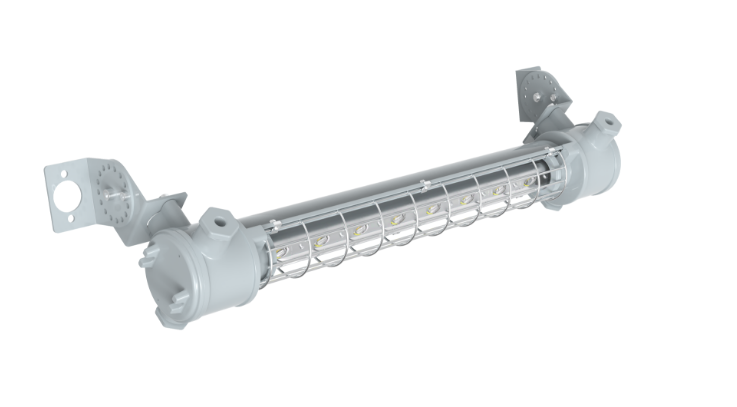

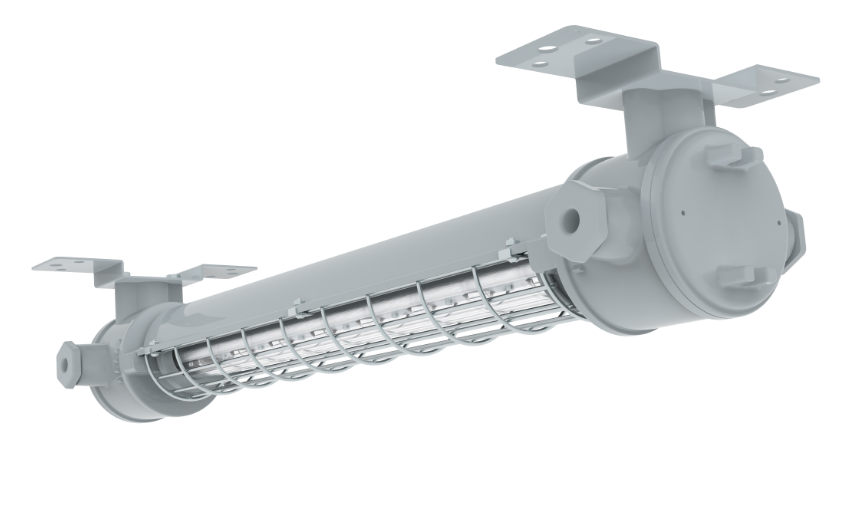

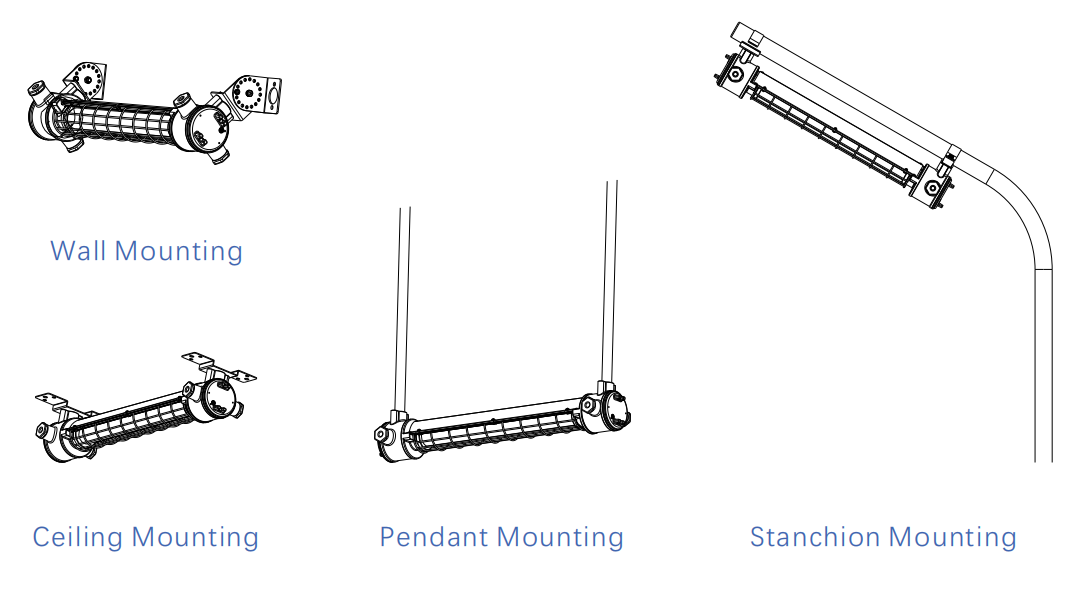

Mounting Options
Dimension Diagram
Ordering Information
List of SKU Naming: EX04-75W-MS-E-3K-60-N3/4
| Series | Power | Additional Function | Input Voltage | CCT | Beam Angle | Cable Entries | ||||||||||||||
| EX04 | ‐20 = 20W | Empty = No Additional Function | L = 12-24Vac | ‐3K = 3000K | ‐60 = 60° | N3/4 = NPT3/4 | ||||||||||||||
| ‐40 = 40W | -MS=Microwave Motion Sensor | E = 100-240Vac | ‐4K = 4000K | ‐90 = 90° | G3/4 = G3/4 | |||||||||||||||
| ‐80 = 80W | - DS = Daylight Sensor | DCL = 12-36Vdc | ‐5K = 5000K | ‐140 = 140° | N1/2 = NPT1/2 | |||||||||||||||
| - DM = Dimmable | DCH = 140-250Vdc | ‐6K = 6000K | G1/2 = G1/2 | |||||||||||||||||
| - DL = DALI | M25 = M25 | |||||||||||||||||||
| - LR = LoRa | M20 = M20 | |||||||||||||||||||
| - GS = GPS | ||||||||||||||||||||
This lamp is widely used in low-ceiling, narrow spaces such as chemical plants, pharmaceutical plants, dust workshops, pump rooms, tunnels, etc., and is especially suitable for basic lighting needs such as channel lighting and equipment lighting.
The EX04-20W supports gas environments in Zone 1 and Zone 2, and dust environments in Zone 21 and Zone 22, and complies with IIC gas group and T6 temperature group requirements.
This model uses a high-efficiency LED light source, with an overall luminous flux of about 2600~2800lm, which is suitable for small-scale stable lighting, with low energy consumption and uniform brightness.
Some models can be equipped with emergency version, which can automatically switch to emergency lighting mode after power outage, and support emergency lighting time of more than 90 minutes to ensure safety needs in power outage scenarios.
EX04 lamps support modular series installation, and some models support access to intelligent lighting control systems such as DALI and 0-10V to achieve centralized control and energy-saving management.
