Installation
Hazardous areas Zone 1 / 2 (Gas) - Zone 21 / 22 (Dust)
ATEX
II 2G Ex db eb mb IIC T6...T5 Gb (Lens Type)
II 2D Ex tb IIIC T80°C…T95°C Db (Lens Type)
IECEx
Ex db eb mb IIC T6...T5 Gb (Lens Type)
Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1
EN/IEC 60079-7; EN/IEC 60079-18
EN/IEC 60079-31

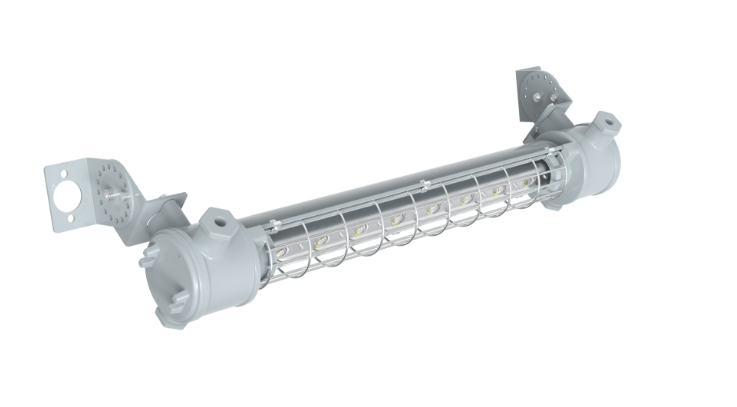

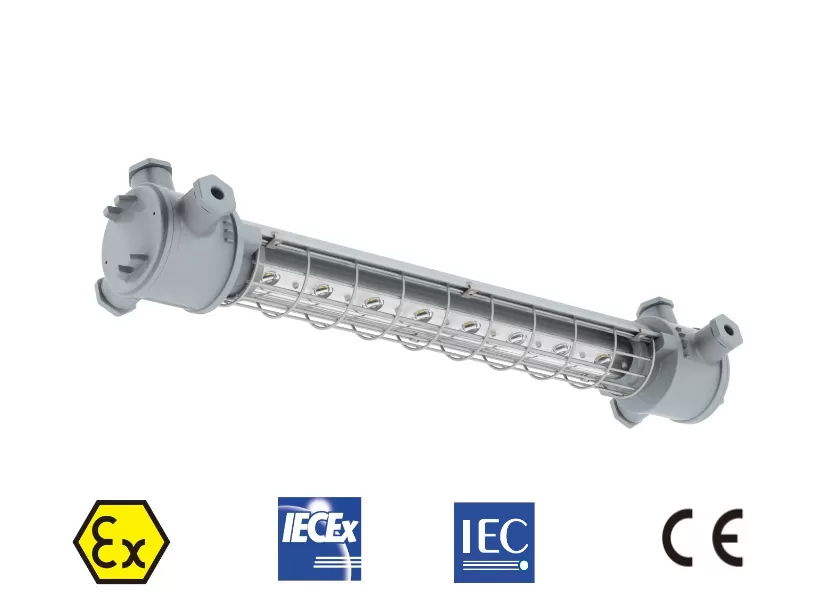

High Luminosity: Despite consuming only 80 watts of power, the SAFER-EX explosion-proof Linear Light delivers a remarkable 12000 lumens of high-quality illumination, ensuring bright and clear visibility in hazardous environments.
Compact Design: With a width of just 5 inches, the EX04 series boasts a compact and lightweight design, making it one of the most space-efficient explosion-proof light fixtures available on the market today.
Versatile Applications: The low-profile design of the EX04 series makes it an ideal choice for applications with limited space where compact and low-profile fixtures are required, offering flexibility and adaptability in various industrial settings.
Robust Protection: The LED assembly of the EX04 series is safeguarded by a tempered borosilicate glass tube, which is further protected by a steel wire guard. This provides robust protection against accidental damage, ensuring the longevity and reliability of the light fixture even in demanding environments.
Easy Installation: Designed for user convenience, the EX04 series features a simple and straightforward installation process, allowing for quick and hassle-free setup in industrial applications requiring explosion-proof lighting solutions.
| Rated Power | 20W | 40W | 80W | |||||||||||
| Light efficacy | 154lm/W | 154lm/W | 154lm/W | |||||||||||
| Luminous Flux | 3080lm | 6160m | 12320lm | |||||||||||
| Fixture Weight | 3kg | 3.7kg | 7kg | |||||||||||
| Type of Protection | Ex db eb mb (Flameproof, Increased Safety, Encapsulation) Ex tb (Dust Protected Enclosure) | |||||||||||||
| ATEX Classification | GroupII Category 2 GD | |||||||||||||
| Area Classification | Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 | |||||||||||||
| Certificate | EU Type Examination Certificate SGS24ATEX0150X IECEx Certificate of Conformity IECEx SGS 24.0067X | |||||||||||||
| Coding | Ex db eb mb IIC T6...T5 Gb Ex tb IIIC T80°C...T95°C Db IP66 Refer to table for T rating and Ambient | |||||||||||||
| Enclosure | Copper free Die-Casting aluminum with epoxy powder coating finished (RAL 7040) | |||||||||||||
| Protective Cover | Borosilicate Glass Tube | |||||||||||||
| Entry | 6 cable entries (NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Optical Distribution | 60°,90°,140° | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K， | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Both sides have direct access to the gearbox lid by rotating threads | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | |||||||||||||
| Temperature Classification | T5(-40°C+65°C)/T6(-40°C+50°C) | T5(-40°C+70°C)/T6(-40°C+55°C) | T5(-40°C+60°C)/T6(-40°C+45°C) | |||||||||||

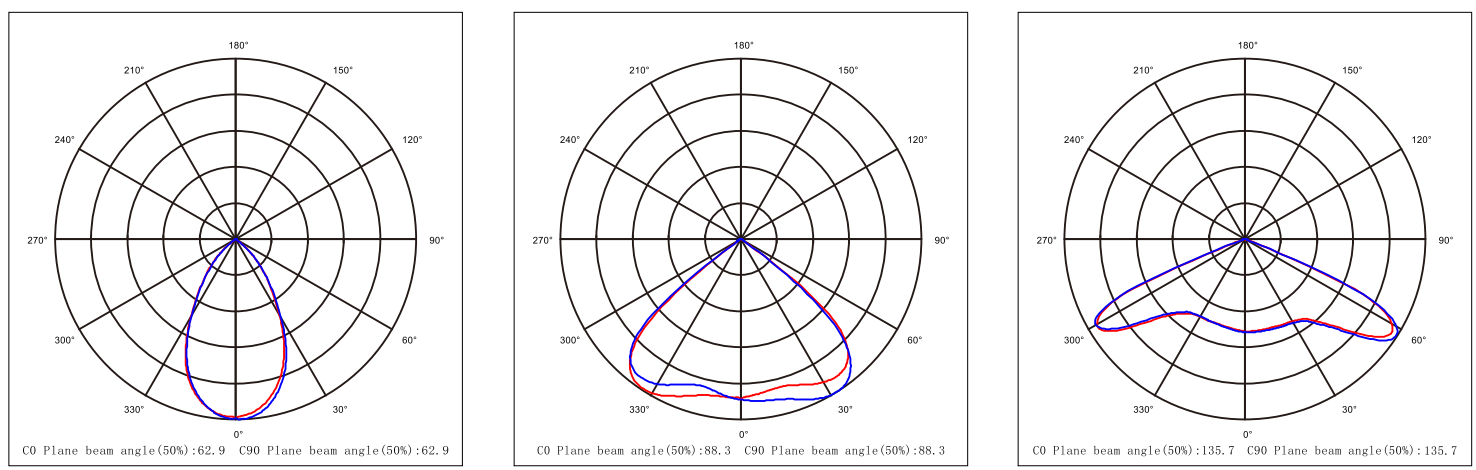

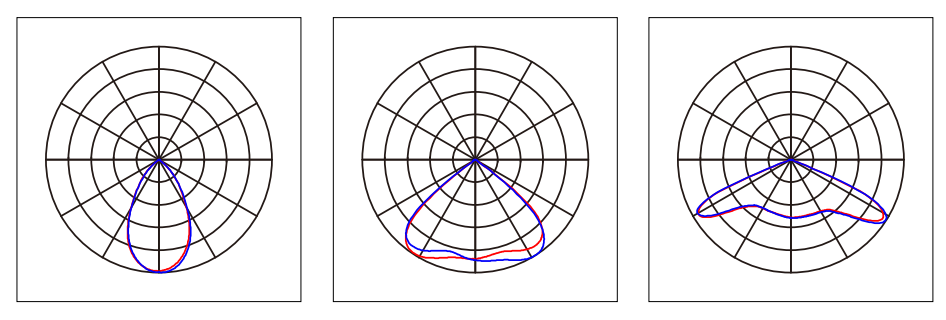

Distribution Curve

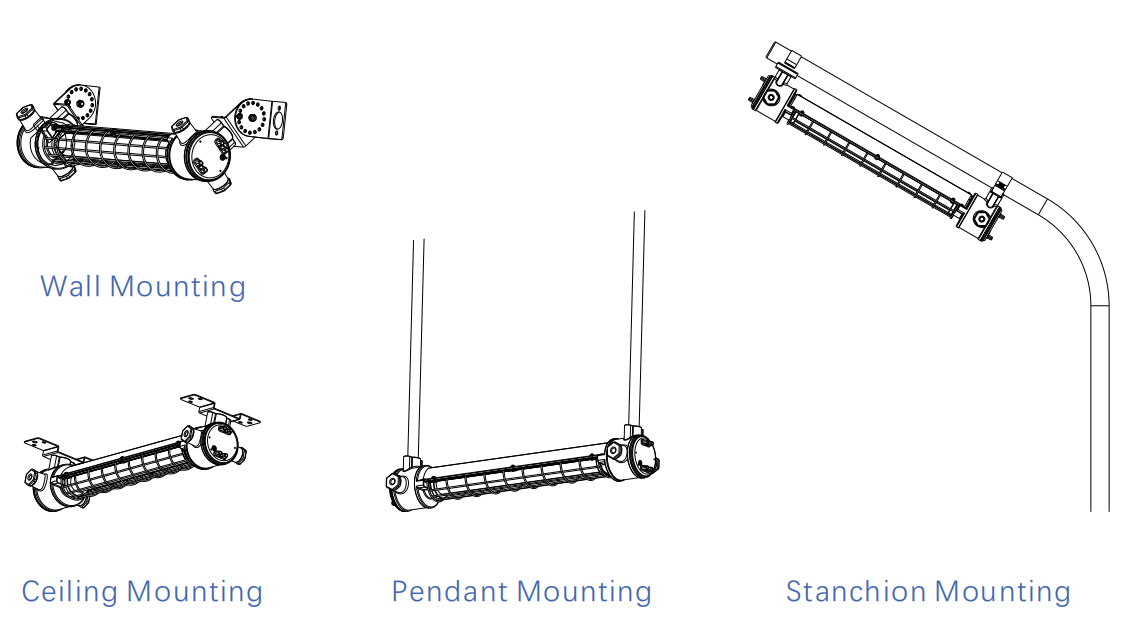

Mounting Options
Dimension Diagram
Unit: mm [ '' ]
Ordering Information
List of SKU Naming: EX04 -80W -6K -60
| Series | Power | Additional Function | Input Voltage | CCT | Beam Angle | Cable Entries | ||||||||||||||
| EX04 | ‐20 = 20W | Empty = No Additional Function | L = 12-24Vac | ‐3K = 3000K | ‐60 = 60° | N3/4 =NPT3/4 | ||||||||||||||
| ‐40 = 40W | -MS=Microwave Motion Sensor | E = 100-240Vac | ‐4K = 4000K | ‐90 = 90° | G3/4 = G3/4 | |||||||||||||||
| ‐80 = 80W | - DS = Daylight Sensor | DCL = 12-36Vdc | ‐5K = 5000K | ‐140 = 140° | N1/2 =NPT1/2 | |||||||||||||||
| - DM = Dimmable | DCH = 140-250Vdc | ‐6K = 6000K | G1/2 = G1/2 | |||||||||||||||||
| - DL = DALI | M25 = M25 | |||||||||||||||||||
| - LR = LoRa | M20 = M20 | |||||||||||||||||||
| - GS = GPS | ||||||||||||||||||||
