Installation
Hazardous areas Zone 2 (Gas) - Zone 21 / 22 (Dust)
UL
Class I Division 2 Group A, B, C, D
Class II Division 1 Group E, F, G
Class II Division 2 Group F, G
Class III Division 1 & 2
ATEX
II 3G EX eb ec mb IIC T6...T5 Gc
II 2D Ex tb IIIC T80°C…T95°C Db
Certificate No SGS25ATEX0003X
IECEx
EX eb ec mb IIC T6...T5 Gc
Ex tb IIIC T80°C…T95°C Db
Certificate No IECEx SGS 25 .0003X
Certificate & Standard
USA: UL1598, UL8750, UL 844
Canada: C22.2#250, CSA C22.2#137
EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7
EN/IEC 60079-18; EN/IEC 60079-31.
Compact and Slim Design: SP05 series explosion - proof linear lights from SAFER - Ex, based on its compact and slim design, have an attractive appearance.
Efficient Heat Dissipation: Featuring an independent LED driver chamber with an external airflow heat sink, these lights excel in dissipating heat, ensuring optimal performance and longevity even in challenging conditions.
Advanced Intelligent Technologies: With options such as Microwave Motion Sensor, Photocell Sensor, Dimming, and DALI control system, the SP05 series offers cutting-edge intelligent features. These technologies enhance efficiency, safety, and flexibility, setting a new standard in the industry.
Robust Construction: Built to withstand hazardous environments, the SP05 series is constructed with high-quality materials and rigorous engineering standards, ensuring durability and reliability even in the toughest conditions.
Versatile Applications: From oil refineries to chemical plants, the SP05 series is suitable for a wide range of hazardous locations. Its versatility, combined with its advanced features and robust design, makes it the ideal choice for industrial lighting solutions.

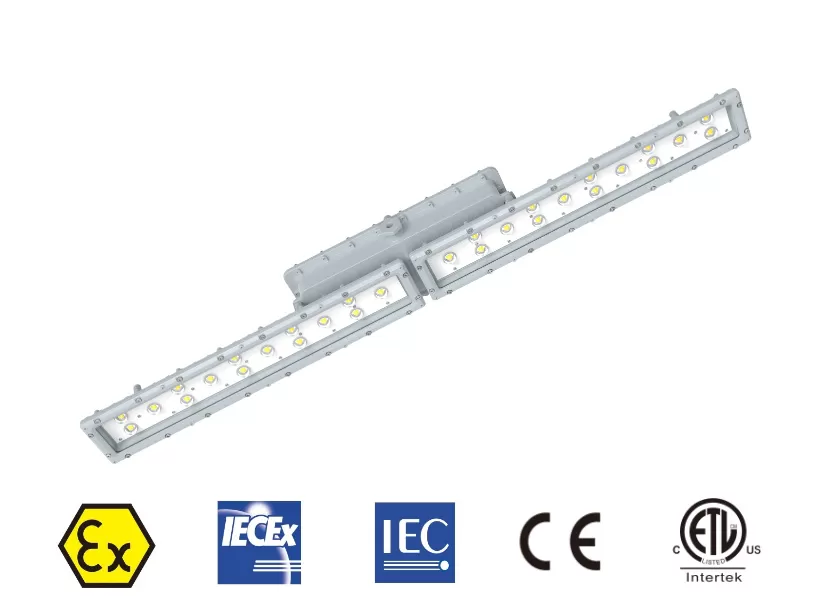

SAFER-Ex’s SP05 Series Explosion-Proof Linear Lights deliver unmatched safety and performance for high-risk environments. Designed for Zone 2 (Gas) and Zone 21/22 (Dust) hazardous locations, these explosion-proof linear lights meet rigorous global certifications, including UL, ATEX, IECEx, and CSA, ensuring compliance and reliability.
Engineered to thrive in extreme conditions, these explosion-proof linear lights combine cutting-edge technology with rugged durability:
Slim profile for confined spaces.
Optional smart controls: Microwave Motion Sensors, Photocell, Dimming, and DALI integration.
Independent LED driver chamber and external airflow heat sink for efficient heat dissipation.
Supports 12–480V AC/DC inputs, ideal for 80W/100W LED linear lighting configurations.
Built with die-cast aluminum housing, tempered glass lenses, and IP66/IK08 ratings, the SP05 Series ensures explosion-proof integrity in oil refineries, chemical plants, and mining tunnels. Each unit undergoes surge (4–6KV), thermal (-40°C to +60°C), and impact testing to exceed safety standards.
With light efficacy up to 163 lm/W, these explosion-proof linear lights reduce energy consumption while providing 7,400–20,700 lumens. Features like daylight harvesting and motion sensors optimize efficiency, making them ideal for 80W/100W LED linear lighting needs.
| Rated Power | 100W | 120W | 150W | |||||||||||
| Light efficacy | 138lm/W | 138lm/W | 138lm/W | |||||||||||
| Luminous Flux | 13800lm | 16560lm | 20700lm | |||||||||||
| Fixture Weight | 10kg | 10kg | 10kg | |||||||||||
| Type of Protection | Ex db eb mb (Flameproof, Increased Safety, Encapsulation) Ex tb (Dust Protected Enclosure) | |||||||||||||
| ATEX Classification | GroupII Category 2 GD | |||||||||||||
| Area Classification | Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 | |||||||||||||
| Certificate | EU Type Examination Certificate SGS25ATEX0006X IECEx Certificate of Conformity IECEx SGS 25 .0003X | |||||||||||||
| Coding | Ex db eb mb IIC T6...T5 Gb Ex tb IIIC T80°C...T95°C Db IP66 Refer to table for T rating and Ambient | |||||||||||||
| Enclosure | Copper free Die-Casting aluminum with epoxy powder coating finished (RAL 7040) | |||||||||||||
| Protective Cover | Tempered Glass / Polycarbonate | |||||||||||||
| Entry | 4 cable entries (NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Optical Distribution | 60°,90°,140° | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Back access to gearbox lid with M5 captive screws | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | |||||||||||||
| Temperature Classification | T5(-40°C+60°C)/T6(-40°C+45°C) | T5(-40°C+60°C)/T6(-40°C+45°C) | ||||||||||||

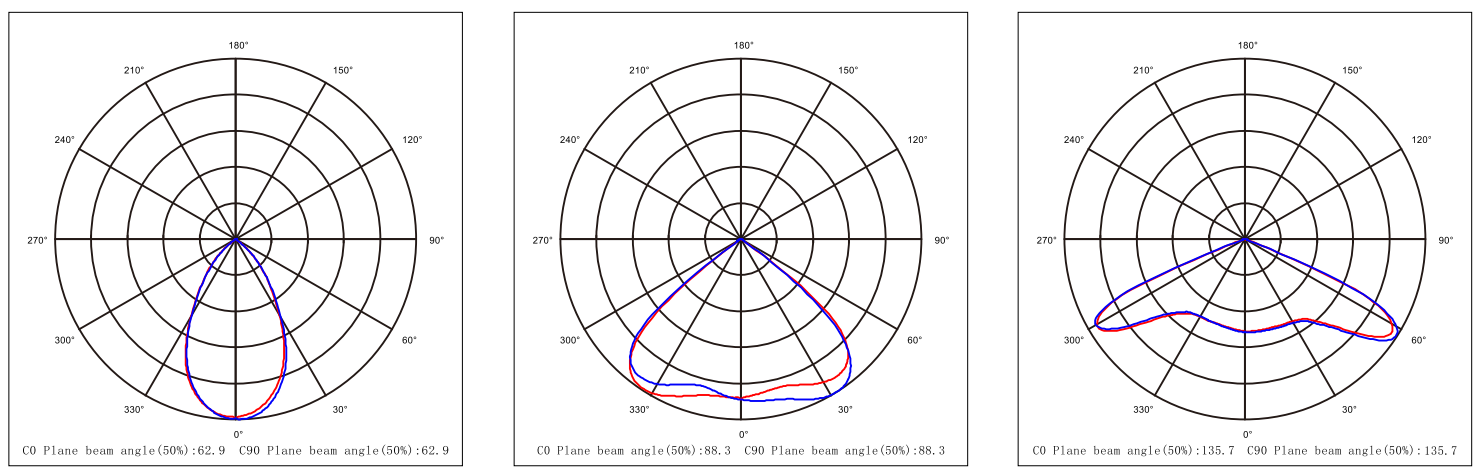

Distribution Curve

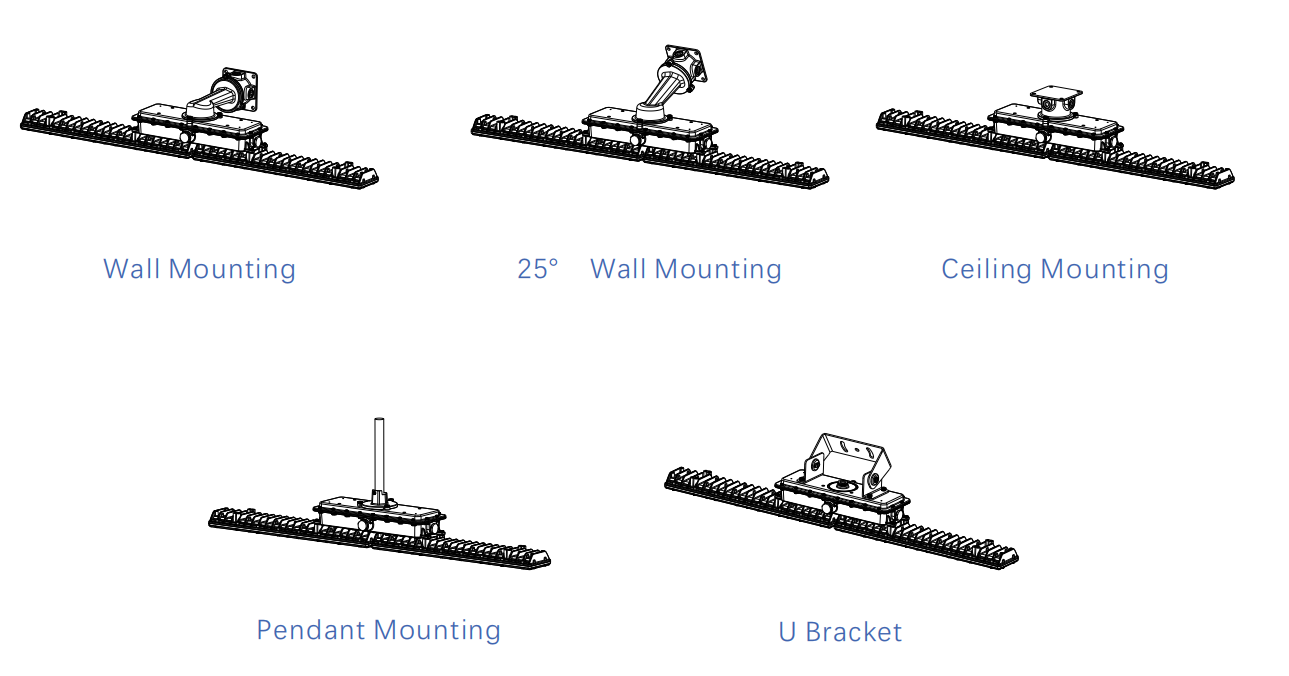

Mounting Options

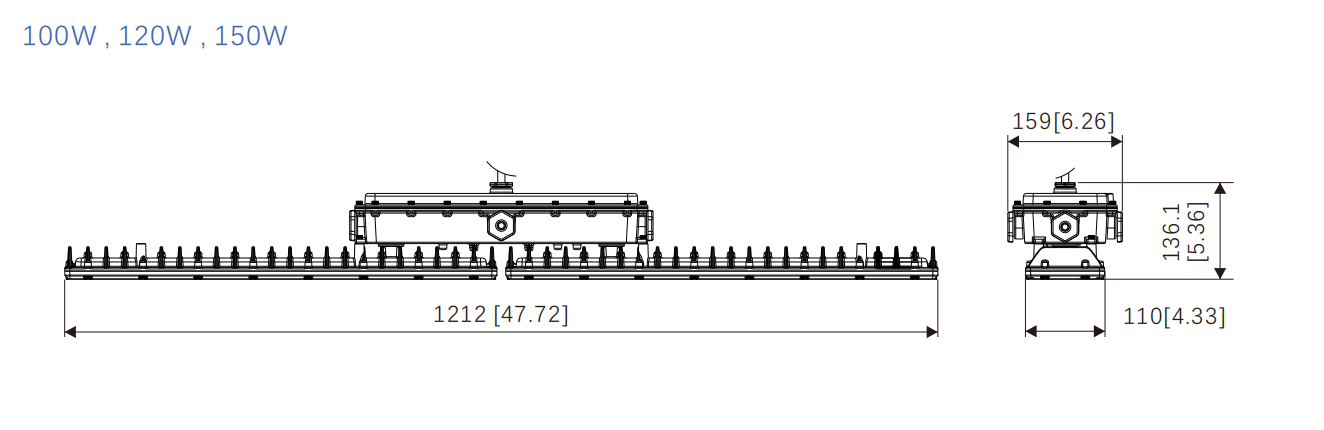

Dimension Diagram
Ordering Information
List of SKU Naming: SP05-150W-MS-E-3K-60-N3/4
| Series | Power | Input Voltage | Additional Function | CCT | Beam Angle | Cable Entries | |||||||||||||
| SP05 | ‐100 = 100W | - L = 12-24Vac | Empty = No Additional Function | ‐3K = 3000K | ‐60 = 60°(Lens) | -N3/4 = NPT3/4 | |||||||||||||
| ‐120 = 120W | - E = 100-240Vac | -MS=Microwave Motion Sensor | ‐4K = 4000K | ‐90 = 90°(Lens) | -N3/4=NPT3/4 | ||||||||||||||
| ‐150 = 150W | - DCL = 12-36Vdc | - DS = Daylight Sensor | ‐5K = 5000K | ‐140 = 140°(Lens) | -G3/4=G3/4 | ||||||||||||||
| - DCH = 140-250Vdc | -DM = Dimmable | ‐6K = 6000K | -N1/2=NPT1/2 | ||||||||||||||||
| - LR = LoRa | -G1/2=G1/2 | ||||||||||||||||||
| - FS = Flash | -M25=M25 | ||||||||||||||||||
| - DL = DALI | -M20=M20 | ||||||||||||||||||
| - GS = GPS | |||||||||||||||||||
Tailor your SP05 lights with:
Power options: 50W–150W (including 80W/100W models).
Voltage and sensor customization.
Multiple mounting configurations (wall, pendant, ceiling).
Site assessments and hazard classification guidance.
Global logistics and flexible configurations (e.g., SP05-75H-5K-140 = 75W, 5000K).
3-year warranty, 24/7 technical support, and hassle-free returns.
Deploy in high-risk settings like:
Oil & Gas: Refineries, storage tanks.
Chemical Plants: Solvent storage areas.
Mining: Underground tunnels with combustible dust.
Inspect seals and lenses quarterly.
Use non-abrasive cleaners for lens clarity.
Match power (e.g., 80W/100W LED linear lighting) to lumen needs.
Confirm Zone/Division requirements and certifications.
With rigorous quality control, global certifications, and a focus on smart, energy-efficient design, the SP05 Series is the definitive choice for hazardous locations. From 80W/100W LED linear lighting to extreme-temperature operation, SAFER-Ex ensures your environment stays safely illuminated.
FAQ
What places are the SP05 series explosion-proof LED linear lights suitable for?
This series is suitable for Zone 1/2 gas environments and Zone 21/22 dust environments, and is widely used in humid and corrosive industrial areas such as petrochemicals, pharmaceuticals, tunnels, and basements.
What is the difference between this product and ordinary LED linear lights?
SP05 adopts explosion-proof structure design, meets Ex d IIC T6 Gb/Ex tD A21 IP66 T80℃ standard, and has excellent dustproof, waterproof, anti-corrosion and impact resistance, which is far superior to ordinary industrial lights.
Does it support serial installation?
Yes, the lamp design supports multiple series connection, and the built-in wiring cavity has reserved wire holes for easy wiring and batch deployment.
