Installation
Hazardous areas Zone 1 / 2 (Gas)
Hazardous areas Zone 21 / 22 (Dust)
ATEX
II 2G Ex db eb mb IIC T5 Gb
II 2D Ex mb tb IIIC T5 Db
IECEx
Ex db eb mb IIC T5 Gb (Lens Type)
Ex mb tb IIIC T5 Db (Lens Type)
Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1
EN/IEC 60079-7; EN/IEC 60079-18
EN/IEC 60079-31
Versatile Applications: The EX-03 series is suitable for both low and high bay lighting applications, offering versatility for a wide range of industrial environments such as warehouses, manufacturing facilities, and hazardous locations.
Enhanced Safety: With its explosion-proof design, the EX-03 series prioritizes safety in potentially hazardous environments, providing reliable illumination without compromising on security.
Sustainable Lighting Solution: By achieving a 60,000-hour rated lifespan with 80% lumen retention, these lights offer a sustainable lighting solution, reducing the need for frequent replacements and minimizing environmental impact.
Easy Installation: Designed for user convenience, the EX-03 series features a user-friendly installation process, allowing for quick and hassle-free setup in industrial settings.
Customization Options: SAFER-Ex offers customization options for the EX-03 series, allowing customers to tailor the lighting fixtures to their specific requirements, including wattage, beam angle, and color temperature, ensuring optimal performance for their unique applications.
| Rated Power | 50W | 75W | 100W | 150W | 200W | ||||||||||||||||||||||||
| Light efficacy | 150lm/W | 150lm/W | 150lm/W | 150lm/W | 150lm/W | ||||||||||||||||||||||||
| Luminous Flux | 7500lm | 11250lm | 15000lm | 22500lm | 30000lm | ||||||||||||||||||||||||
| Fixture Weight | 5.45kgs/12.02lbs | 5.45kgs/12.02lbs | 5.45kgs/12.02lbs | 11.25kgs/24.8lbs | 11.25kgs/24.8lbs | ||||||||||||||||||||||||
| Input Voltage | 12-24Vac, 100-240Vac, 120-277Vac, 120-347Vac, 347-480Vac, 12-36Vdc, 140-250Vdc for option | ||||||||||||||||||||||||||||
| Surge Protection | DM 4KV, CM 10KV/20KV | ||||||||||||||||||||||||||||
| Housing Material | Copper free Die-Casting aluminum with expoxy powder coating finished | ||||||||||||||||||||||||||||
| Lens Material | Tempered Glass | ||||||||||||||||||||||||||||
| Cable Entry | M20, M25, NPT 1/2", NPT3/4", G1/2, G3/4 | ||||||||||||||||||||||||||||
| Ingress Protection | IP66 | ||||||||||||||||||||||||||||
| Impact Rating | IK10 (20J) | ||||||||||||||||||||||||||||
| Ambient Temperature | -40℃ ~+70℃ | ||||||||||||||||||||||||||||
| Intelligent Functions | Microwave Motion Sensor / Photocell Sensor / Dimming / DALI for option | ||||||||||||||||||||||||||||
| Warranty | 5-year standard warranty | ||||||||||||||||||||||||||||

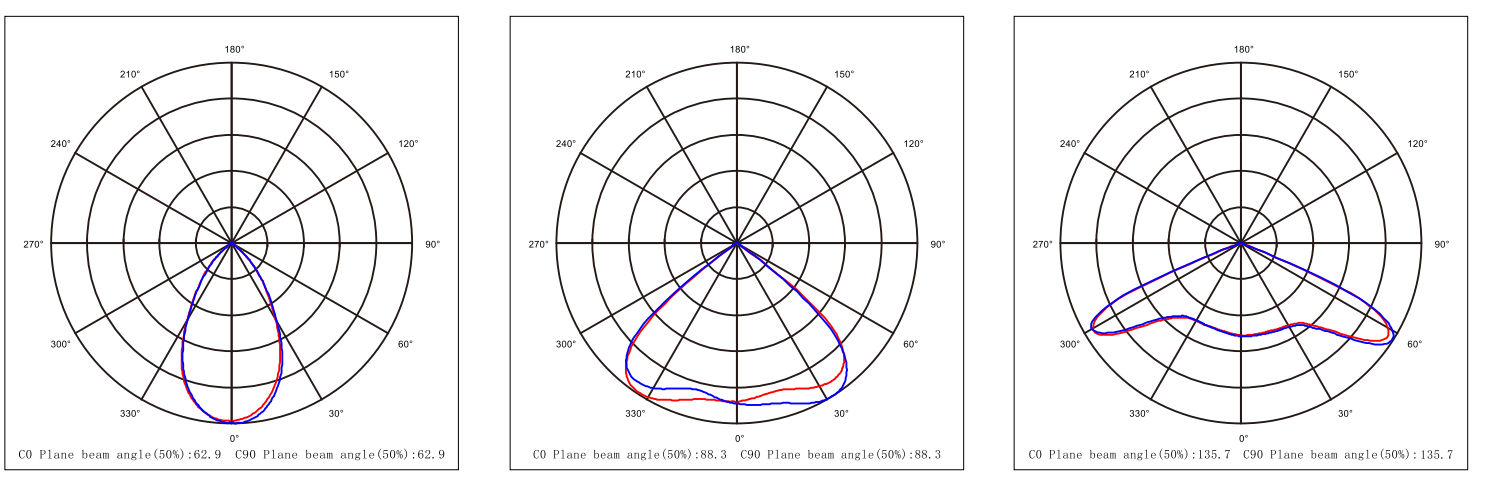

Distribution Curve
Mounting Options
 |  |  |  |  |
| Wall Mounting | 25° Wall Mounting | Trunnion Swivel Mounting | Pendant Mounting | Ceiling Mounting |

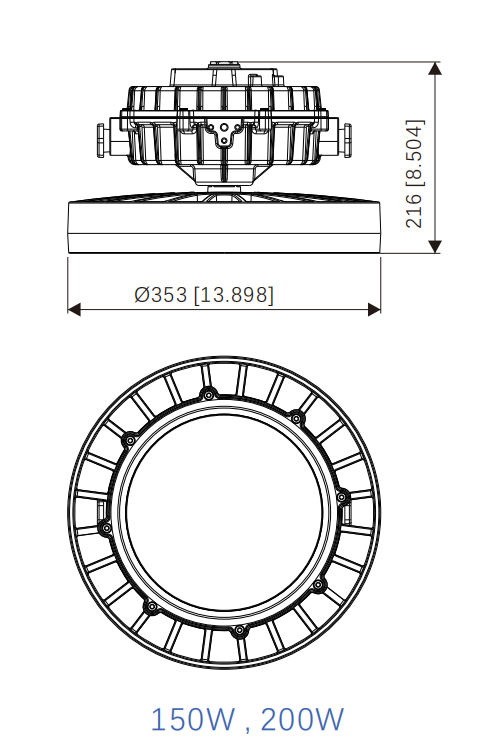

Dimension Diagram
Unit: mm [ '' ]
Ordering Information
List of SKU Naming: EX03 -200E -5K -140
| Series | Rated Power | Input Voltage | CCT | Beam Angle | |||||||||||||||||||||||||
| EX03 | ‐50 = 50W | L = 12-24Vac | ‐3K = 3000K | ‐60 = 60° (Lens) | |||||||||||||||||||||||||
| ‐75 = 75W | E = 100-240Vac | ‐4K = 4000K | ‐90 = 90° (Lens) | ||||||||||||||||||||||||||
| ‐100 = 100W | U = 120-277Vac | ‐5K = 5000K | ‐140 = 140° (Lens) | ||||||||||||||||||||||||||
| ‐150 = 150W | UH = 120-347Vac | ‐6K = 6000K | |||||||||||||||||||||||||||
| ‐200 = 200W | H = 277-480Vac | ||||||||||||||||||||||||||||
| DCL = 12-36Vdc | |||||||||||||||||||||||||||||
| DCH = 140-250Vdc | |||||||||||||||||||||||||||||
