Installation
Hazardous areas Zone 1 / 2 (Gas) - Zone 21 / 22 (Dust)
ATEX
II 2G Ex db eb mb IIC T6...T5 Gb (Lens Type)
II 2D Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No SGS25ATEX0003X
IECEx
Ex db eb mb IIC T6...T5 Gb (Lens Type)
Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No IECEx SGS 25 .0003X
Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1
EN/IEC 60079-7; EN/IEC 60079-18
EN/IEC 60079-31
Superior Lifespan: The EX-03 series from SAFER-Ex boasts an impressive 60,000-hour rated lifespan, ensuring long-term reliability and cost-effectiveness for industrial applications.
Energy Efficiency: With advanced LED technology and a special heat dissipating design, these low/high bay lights offer energy-efficient illumination, reducing power consumption and operating costs.
Robust Construction: Featuring a heavy-duty housing, the EX-03 series is built to withstand harsh industrial environments, providing durability and longevity in demanding conditions.
Vibration and Impact Resistance: The solid-state design of these lights enhances their resistance to vibration and impacts, ensuring reliable performance even in rugged settings.
High Lumen Retention: Even after extended use, the EX-03 series maintains 80% lumen retention, delivering consistent and bright illumination throughout its lifespan, contributing to enhanced safety and productivity in hazardous locations.
| Rated Power | 75W | 100W | ||||||||||||
| Light efficacy | 152lm/W | 152lm/W | ||||||||||||
| Luminous Flux | 11400lm | 15200lm | ||||||||||||
| Fixture Weight | 5.45kg | 5.45kg | ||||||||||||
| Type of Protection | Ex db eb mb (Flameproof, Increased Safety, Encapsulation) Ex tb (Dust Protected Enclosure) | |||||||||||||
| ATEX Classification | GroupII Category 2 GD | |||||||||||||
| Area Classification | Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 | |||||||||||||
| Certificate | EU Type Examination Certificate SGS25ATEX0006X IECEx Certificate of Conformity IECEx SGS 25 .0003X | |||||||||||||
| Coding | Ex db eb mb IICT6...T5 Gb Ex tb IIICT80°C...T95°C Db IP66 Refer to table forTrating and Ambient | |||||||||||||
| Enclosure | CopperfreeDie-Castinga luminum with epoxy powder coating finished(RAL 7040) | |||||||||||||
| Protective Cover | Tempered Glass/Polycarbonate | |||||||||||||
| Entry | 2 cable entries(NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Electronic Driverion | 60°,90°,140° | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Back access to gearbox lid with M5 captive screws | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | |||||||||||||
| Temperature Classification | T5(-40°C+60°C)/T6(-40°C+45°C) | T5(-40°C+60°C)/T6(-40°C+45°C) | ||||||||||||

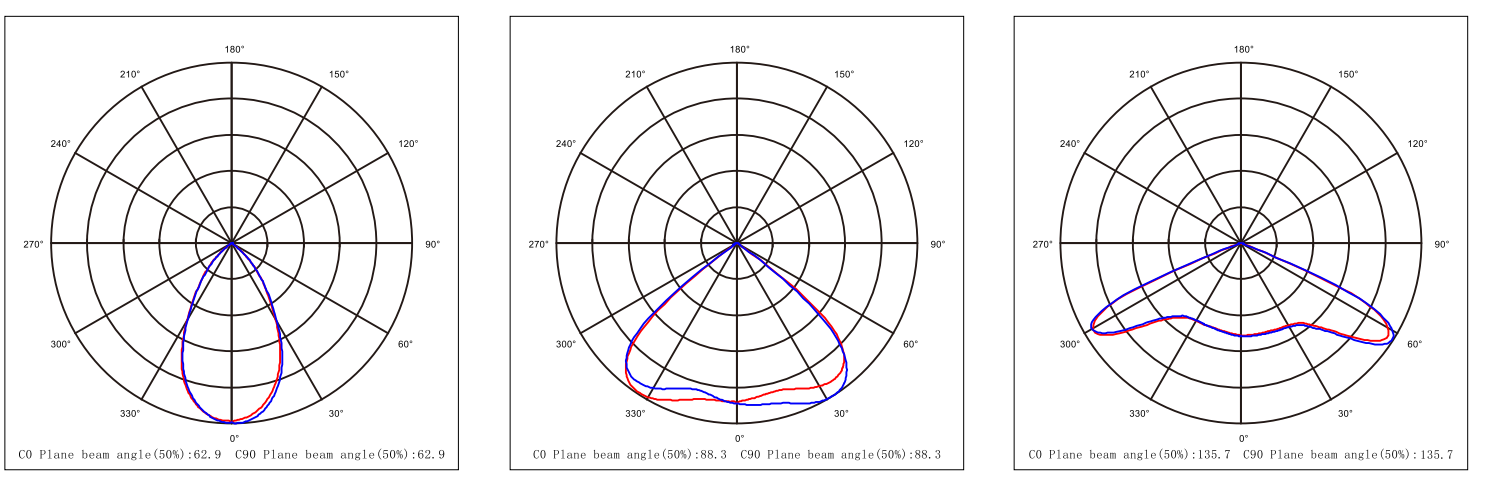

Distribution Curve

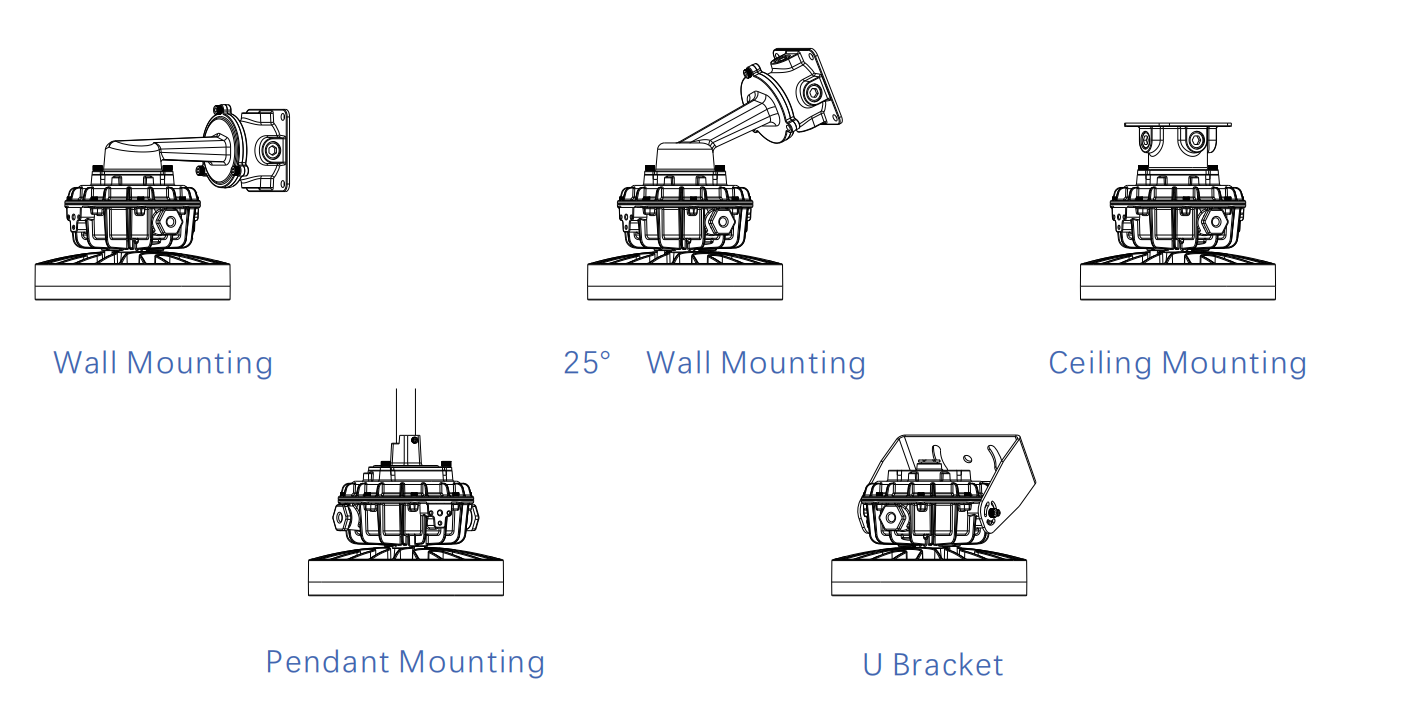

Mounting Options

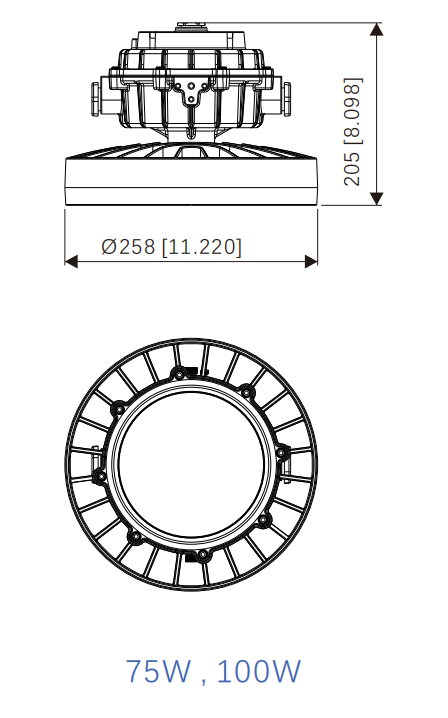

Dimension Diagram
Ordering Information
List of SKU Naming: EX03 -100E -4K -90
| Series | Rated Power | Additional Function | Input Voltage | CCT | Beam Angle | Cable Entries | |||||||||||||
| EX03 | ‐75 = 75W | Empty = No Additional Function | -L = 12-24Vac | ‐3K = 3000K | ‐60 = 60° | N3/4=NPT3/4 | |||||||||||||
| ‐100 = 100W | -MS=Microwave Motion Sensor | -E = 100-240Vac | ‐4K = 4000K | ‐90 = 90° | G3/4=G3/4 | ||||||||||||||
| - DS = Daylight Sensor | -DCL = 12-36Vdc | ‐5K = 5000K | ‐140 = 140° | N1/2=NPT1/2 | |||||||||||||||
| - DM = Dimmable | -DCH = 140-250Vdc | ‐6K = 6000K | G1/2=G1/2 | ||||||||||||||||
| -DL=DALI | M25=M25 | ||||||||||||||||||
| - LR = LoRa | M20=M20 | ||||||||||||||||||
| -GS = GPS | |||||||||||||||||||
