Installation
Hazardous areas Zone 1 (Gas) - Zone 21 (Dust)
ATEX
II 2G Ex db eb mb IIC T6...T5 Gb
II 2D Ex tb IIIC T80°C…T95°C Db
Certificate No SGS25ATEX0007X
IECEx
Ex db eb mb IIC T6...T5 Gb
Ex tb IIIC T80°C…T95°C Db
Certificate No IECEx SGS 25.0004X
Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1;
EN/IEC 60079-7; EN/IEC 60079-18;
EN/IEC 60079-31
Highly Energy Efficient >150lm/W
Sealed for life LED enclosure with no exposed øame paths
Easy access gearbox with captive screws
Low temperature applications to -40°C
220 degree wide beam
Rated Power | 15W | 25W | 50W | |||||||||||
Light efficacy | 164lm/W | 164lm/W | 161lm/W | |||||||||||
Luminous Flux | 2460lm | 4100lm | 8050lm | |||||||||||
Fixture Weight | 4.2kg | 4.2kg | 4.5kg | |||||||||||
Type of Protection | Ex db eb mb (Flameproof, Increased Safety, Encapsulation) Ex tb (Dust Protected Enclosure) | |||||||||||||
ATEX Classification | GroupII Category 2 GD | |||||||||||||
Area Classification | Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 | |||||||||||||
Certificate | EU Type Examination Certificate SGS25ATEX0007X IECEx Certificate of Conformity IECEx SGS 25.0004X | |||||||||||||
Coding | Ex db eb mb IIC T6...T5 Gb Ex tb IIIC T80°C...T95°C Db IP66 Refer to table for T rating and Ambient | |||||||||||||
Enclosure | Copper free Die-Casting aluminum with epoxy powder coating finished (RAL 7040) | |||||||||||||
Entry | 4 cable entries (NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected) | |||||||||||||
Termination | 3 core 6mm² max conductor with looping | |||||||||||||
Control Gear | Electronic Driver | |||||||||||||
Optical Distribution | Wide beam | |||||||||||||
Colour Temperature (CCT) | 3000K-6000K,Red, Green, Blue, Amber | |||||||||||||
Colour Rendering Index (Ra) | >80 | |||||||||||||
Maintenance | Front access to gearbox lid with 4 x M8 captive screws | |||||||||||||
Impact Protection | IK08 | |||||||||||||
Ingress Protection | IP66 to EN 60529 | |||||||||||||
Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | |||||||||||||
Temperature Classification | T5(-40°C+70°C)/T6(-40°C+65°C) | T5(-40°C+70°C)/T6(-40°C+65°C) |

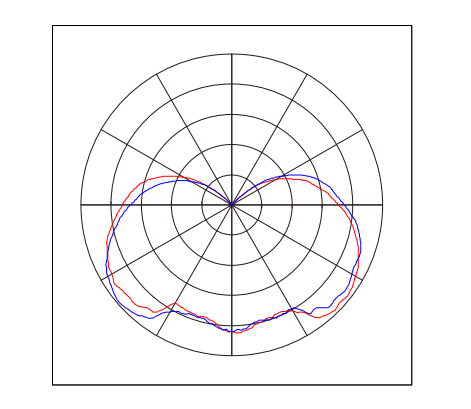

Distribution Curve

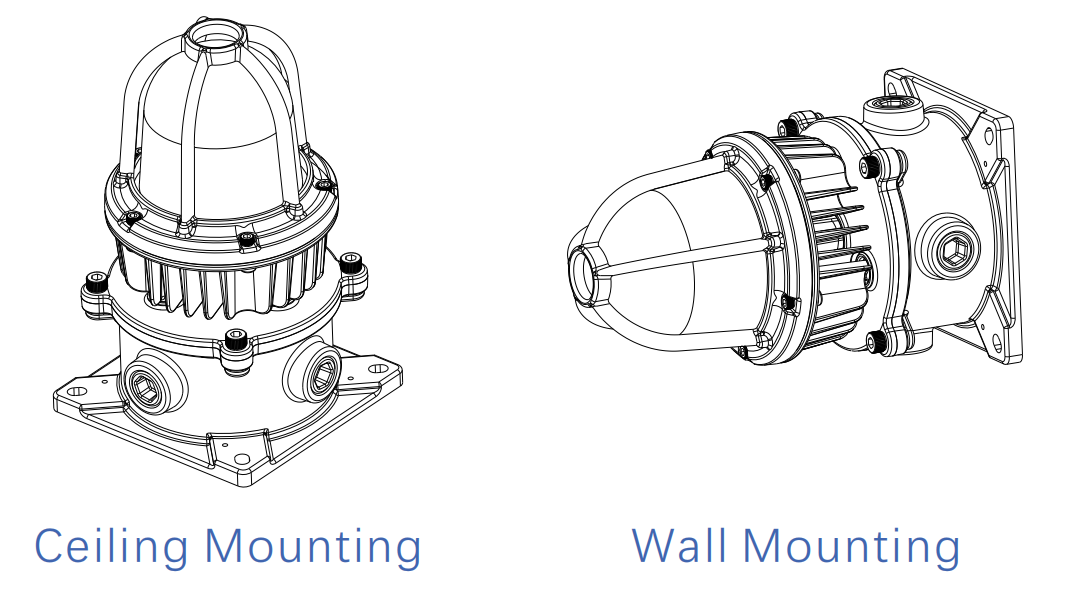

Mounting Options

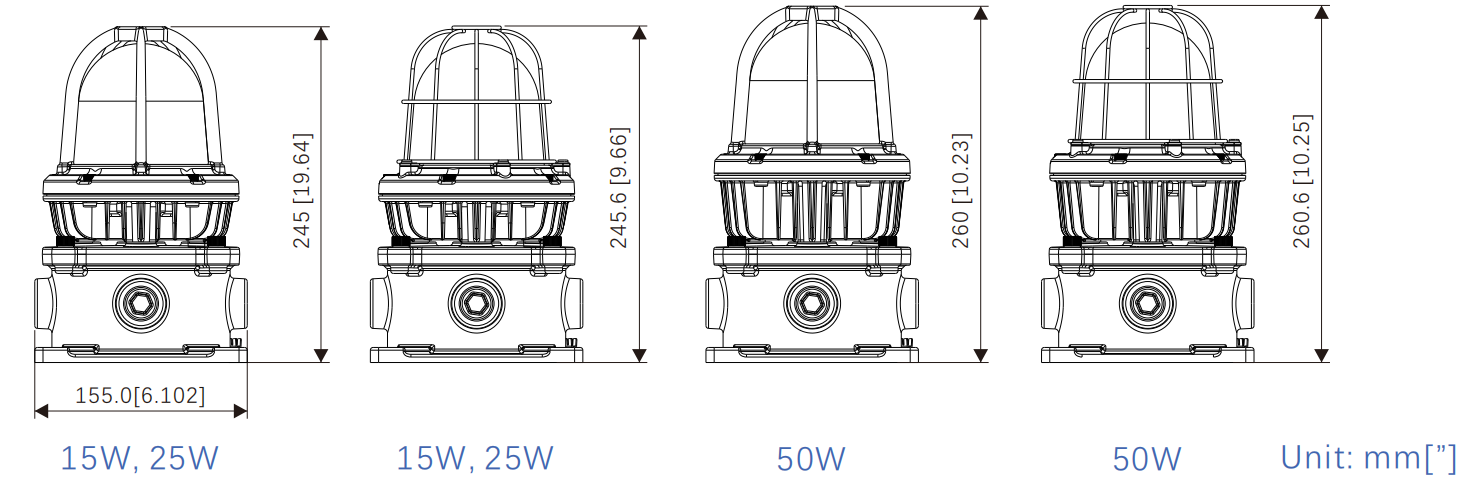

Dimension Diagram
Ordering Information
List of SKU Naming:EX02C-25W-MS-E-R-220-N3/4
Series | Rated Power | Additional Function | Input Voltage | CCT | Beam Angle | Cable Entries | ||||||||||||||
EX02C | ‐15 = 15W | Empty = No Additional Function | L = 12-24Vac | W = White | ‐220 = 220° | N3/4 = NPT3/4 | ||||||||||||||
‐25 = 25W | - MS = Microwave Motion Sensor | E = 100-240Vac | R = Red | G3/4 = G3/4 | ||||||||||||||||
-50=50W | - DS = Daylight Sensor | U=120 - 277 Vac | G = Green | N1/2 = NPT1/2 | ||||||||||||||||
- DM = Dimmable | UH = 120 - 347 Vac | B = Blue | G1/2 = G1/2 | |||||||||||||||||
- DL = DALI | H = 277 - 480 Vac | A = Amber | M25 = M25 | |||||||||||||||||
- FS = Flash | DCH =140 - 250 Vdc | |||||||||||||||||||
- GS = GPS |
FAQ
What colors are available?
Six standard light sources are available: red, blue, green, yellow, white, and purple. Users can customize the light sources according to different purposes, such as danger warning, operation instructions, emergency shutdown, etc.
What are the sound decibels and strobe frequency?
The buzzer volume is as high as 95~110dB (within 1 meter), and the strobe frequency is about 60 times/minute, which can significantly improve the warning effect in high-noise and low-visibility environments.
