Installation
Hazardous areas Zone 1 / 2 (Gas) - Zone 21 / 22 (Dust)
UL
Class I Division 1 Group C, D
Class I Division 2 Group A, B, C, D
Class II Division 1 Group E, F, G
Class II Division 2 Group F, G
Class III Division 1 & 2
ATEX
II 2G Ex db eb mb IIC T6...T5 Gb
II 2D Ex tb IIIC T80°C…T95°C Db
Certificate No SGS25ATEX0007X
IECEx
Ex db eb mb IIC T6...T5 Gb
Ex tb IIIC T80°C…T95°C Db
Certificate No IECEx SGS 25.0004X
Certificate & Standard
USA: UL 1598, UL 8750, UL 844
Canada:C22.2#250, CSA C22.2#137
EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7
EN/IEC 60079-18; EN/IEC 60079-31
Explosion-Proof Design:
The EX02 Explosion-Proof Signal Light is built to contain sparks, flames, and explosions, thereby protecting both personnel and equipment in volatile environments.
Energy Efficiency:
Incorporating energy-saving LED technology, our EX02 Explosion-Proof Signal Light helps reduce operational costs while maintaining excellent luminous output.
Robust Construction:
Constructed from high-quality materials with an improved sealing system and central lock, this signal light meets IP66/IP67 standards for dust and water resistance.
Versatile Installation:
Suitable for mounting on flat surfaces, poles, and ceilings, the EX02 Explosion-Proof Signal Light can be easily integrated into various settings including chemical plants, refineries, and offshore platforms.
Multiple Color Options:
With six vibrant color choices, our EX02 Explosion-Proof Signal Light ensures effective visual signaling across different industrial applications.
| Rated Power | 15W | 25W | 50W | |||||||||||
| Light efficacy | 164lm/W | 164lm/W | 161lm/W | |||||||||||
| Luminous Flux | 2460lm | 4100lm | 8050lm | |||||||||||
| Fixture Weight | 4.2kg | 4.2kg | 4.5kg | |||||||||||
| Type of Protection | Ex db eb mb (Flameproof, Increased Safety, Encapsulation) Ex tb (Dust Protected Enclosure) | |||||||||||||
| ATEX Classification | GroupII Category 2 GD | |||||||||||||
| Area Classification | Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 | |||||||||||||
| Certificate | EU Type Examination Certificate SGS25ATEX0007X IECEx Certificate of Conformity IECEx SGS 25.0004X | |||||||||||||
| Coding | Ex db eb mb IIC T6...T5 Gb Ex tb IIIC T80°C...T95°C Db IP66 Refer to table for T rating and Ambient | |||||||||||||
| Enclosure | Copper free Die-Casting aluminum with epoxy powder coating finished (RAL 7040) | |||||||||||||
| Entry | 4 cable entries (NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Optical Distribution | Wide beam | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K，Red, Green, Blue, Amber | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Front access to gearbox lid with 4 x M8 captive screws | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | |||||||||||||
| Temperature Classification | T5(-40°C+70°C)/T6(-40°C+65°C) | T5(-40°C+70°C)/T6(-40°C+65°C) | ||||||||||||
Distribution Curve
Mounting Options
  |
|
|  |  |
Wall Mounting | 25° Wall Mounting | Ceiling Mounting | Pendant Mounting | U Bracket |

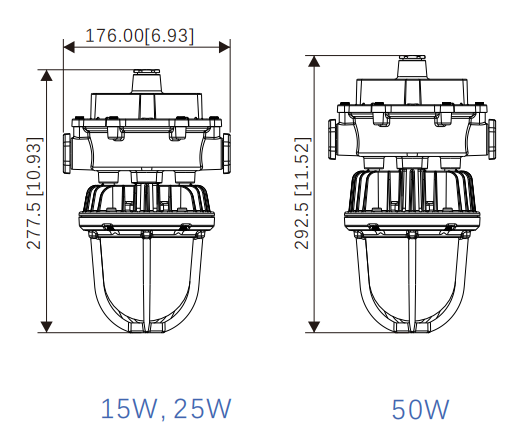

Dimension Diagram
Ordering Information
List of SKU Naming: EX02-25W-MS-E-R-220
| Series | Rated Power | Additional Function | Input Voltage | CCT | Beam Angle | Cable Entries | |||||||||||||||
| EX02 | ‐15 = 15W | Empty = No Additional Function | -L = 12-24Vac | -W = White | ‐220 = 220° | -N3/4 = NPT3/4 | |||||||||||||||
| ‐25 = 25W | - MS = Microwave Motion Sensor | -E =100-240Vac | -R = Red | -G3/4 = G3/4 | |||||||||||||||||
| ‐50 = 50W | - DS = Daylight Sensor | -U = 120-277Vac | -G = Green | -N1/2 = NPT1/2 | |||||||||||||||||
| - DM = Dimmable | -UH = 120-347Vac | -B = Blue | -G1/2 = G1/2 | ||||||||||||||||||
| - DL = DALI | -H = 277-480Vac | -A = Amber | -M25 = M25 | ||||||||||||||||||
| - LR = LoRa | -DCL = 12-36Vdc | -M20 = M20 | |||||||||||||||||||
| - FS = Flash | -DCH = 140-250Vdc | ||||||||||||||||||||
| - GS = GPS | |||||||||||||||||||||
Our EX02 Explosion-Proof Signal Light is widely used in industries where safety is paramount. It is ideal for:
Chemical and Petrochemical Plants: Providing critical signal indications in hazardous atmospheres.
Refineries and Offshore Platforms: Ensuring reliable operation in environments with explosive gases and combustible dust.
Industrial Facilities: Enhancing safety in areas like power plants, grain storage, and bio-research facilities.
Versatile Signal Applications: Available in both rotating flush and constant glow styles, this light is perfect for a wide range of industrial signaling needs.
With unmatched safety and efficiency, the EX02 Explosion Proof Signal Light is the preferred choice for explosion proof led lighting fixtures in hazardous environments.Featuring superior design, energy efficiency, and rugged construction, the EX02 Explosion Proof Signal Light is an indispensable part of your safety protocols by ensuring clear, reliable illumination from the first installation to the last.
