Installation
Hazardous areas Zone 1 / 2 (Gas) - Zone 21 / 22 (Dust)
UL
Class I Division 1 Group C, D
Class I Division 2 Group A, B, C, D
Class II Division 1 Group E, F, G
Class II Division 2 Group F, G
Class III Division 1 & 2
ATEX
II 2G Ex db eb mb IIC T6...T5 Gb
II 2D Ex tb IIIC T80°C…T95°C Db
Certificate No SGS25ATEX0007X
IECEx
Ex db eb mb IIC T6...T5 Gb
Ex tb IIIC T80°C…T95°C Db
Certificate No IECEx SGS 25.0004X
Certificate & Standard
USA: UL 1598, UL 8750, UL 844
Canada:C22.2#250, CSA C22.2#137
EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7
EN/IEC 60079-18; EN/IEC 60079-31
Explosion-Proof Design: The EX02 series by SAFER-Ex is engineered with robust construction to withstand hazardous environments, ensuring safety and reliability in potentially volatile settings.
Energy Efficiency: These strobe/signal lights are designed with energy-efficient technology, minimizing power consumption while delivering powerful and effective signaling capabilities, thus reducing operational costs.
Superior Signal Quality: With their advanced design, the EX02 series provides superior signal quality, offering clear and bright illumination to enhance visibility and facilitate effective communication in industrial settings.
Application Flexibility: The EX02 series offers versatility in applications, catering to various signaling needs in hazardous locations. Whether it's for warning signals, emergency notifications, or process monitoring, these lights provide flexibility to adapt to different requirements.
Color Options: Choose from six different colors of light sources—White, Red, Green, Blue, Yellow, and Purple—to meet specific signaling requirements and provide optimal visibility in diverse industrial environments, enhancing safety and efficiency.
| Rated Power | 15W | 25W | 50W | |||||||||||
| Light efficacy | 164lm/W | 164lm/W | 161lm/W | |||||||||||
| Luminous Flux | 2460lm | 4100lm | 8050lm | |||||||||||
| Fixture Weight | 4.2kg | 4.2kg | 4.5kg | |||||||||||
| Type of Protection | Ex db eb mb (Flameproof, Increased Safety, Encapsulation) Ex tb (Dust Protected Enclosure) | |||||||||||||
| ATEX Classification | GroupII Category 2 GD | |||||||||||||
| Area Classification | Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 | |||||||||||||
| Certificate | EU Type Examination Certificate SGS25ATEX0007X IECEx Certificate of Conformity IECEx SGS 25.0004X | |||||||||||||
| Coding | Ex db eb mb IIC T6...T5 Gb Ex tb IIIC T80°C...T95°C Db IP66 Refer to table for T rating and Ambient | |||||||||||||
| Enclosure | Copper free Die-Casting aluminum with epoxy powder coating finished (RAL 7040) | |||||||||||||
| Entry | 4 cable entries (NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Optical Distribution | Wide beam | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K，Red, Green, Blue, Amber | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Front access to gearbox lid with 4 x M8 captive screws | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | |||||||||||||
| Temperature Classification | T5(-40°C+70°C)/T6(-40°C+65°C) | T5(-40°C+70°C)/T6(-40°C+65°C) | ||||||||||||
Distribution Curve

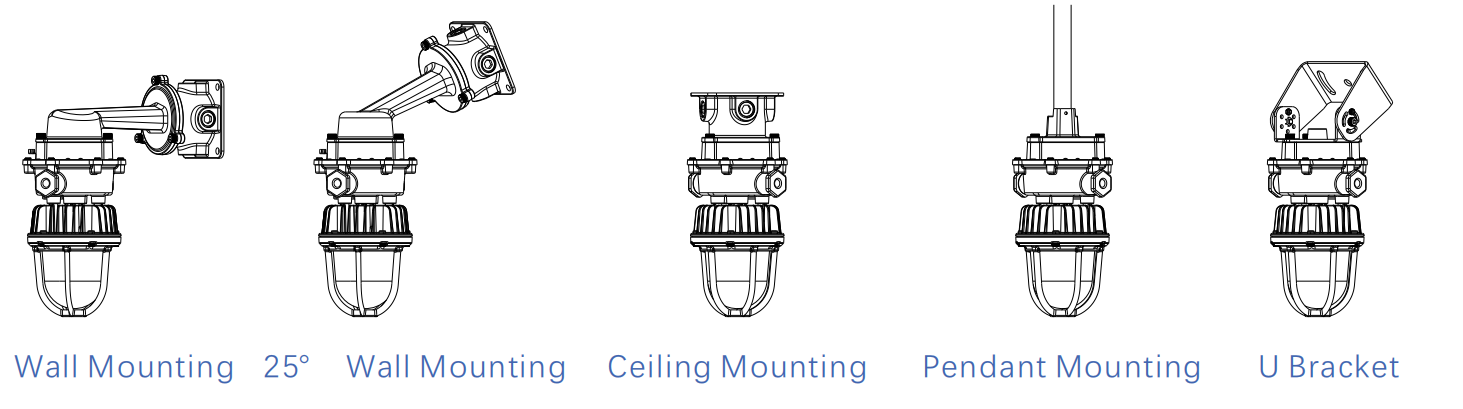

Mounting Options

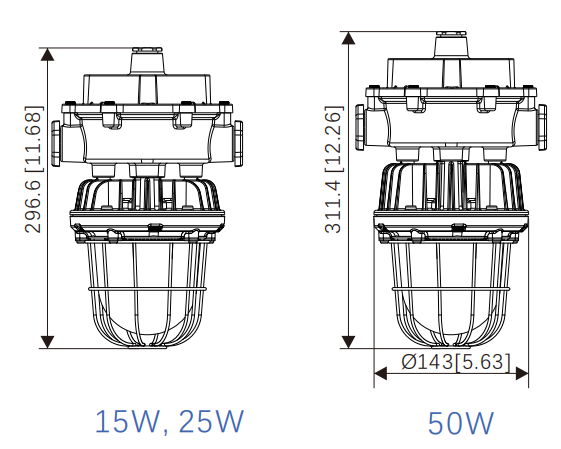

Dimension Diagram
Ordering Information
List of SKU Naming: EX02 -25W - R -220
| Series | Rated Power | Additional Function | Input Voltage | CCT | Beam Angle | Cable Entries | |||||||||||||||
| EX02 | ‐15 = 15W | Empty = No Additional Function | -L = 12-24Vac | -W = White | ‐220 = 220° | -N3/4 = NPT3/4 | |||||||||||||||
| ‐25 = 25W | - MS = Microwave Motion Sensor | -E = 100-240Vac | -R = Red | -G3/4 = G3/4 | |||||||||||||||||
| ‐50 = 50W | - DS = Daylight Sensor | -U = 120-277Vac | -G = Green | -N1/2 = NPT1/2 | |||||||||||||||||
| - DM = Dimmable | -DCL = 12-36Vdc | -B = Blue | -G1/2 = G1/2 | ||||||||||||||||||
| - DL = DALI | -DCH = 140-250Vdc | -A = Amber | -M25 = M25 | ||||||||||||||||||
| - LR = LoRa | -M20 = M20 | ||||||||||||||||||||
| - FS = Flash | |||||||||||||||||||||
| - GS = GPS | |||||||||||||||||||||
