Hazardous Location Led High Bay Light /Led Explosion Proof Light EX03 Series 25/50W
Installation
Hazardous areas Zone 1 (Gas)
Hazardous areas Zone 21 (Dust)
ATEX
II 2G Ex db eb mb IIC T5 Gb
II 2D Ex mb tb IIIC T5 Db
Certificate No SGS25ATEX0003X
IECEx
Ex db eb mb IIC T5 Gb (Lens Type)
Ex mb tb IIIC T5 Db (Lens Type)
Certificate No IECEx SGS 25 .0003X
Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1
EN/IEC 60079-7; EN/IEC 60079-18
EN/IEC 60079-31
E-mail:
Key words:
Product Highlight of 50W Hazardous Location Led High Bay Light
Superior Lifespan: The EX-03 series 50W Hazardous Location Led High Bay Light from SAFER-Ex boasts an impressive 60,000-hour rated lifespan, ensuring long-term reliability and cost-effectiveness for industrial applications.
Energy Efficiency: With advanced LED technology and a special heat dissipating design, these low/high bay lights offer energy-efficient illumination, reducing power consumption and operating costs.
Robust Construction: Featuring a heavy-duty housing, the EX-03 series is built to withstand harsh industrial environments, providing durability and longevity in demanding conditions.
Vibration and Impact Resistance: The solid-state design of these lights enhances their resistance to vibration and impacts, ensuring reliable performance even in rugged settings.
High Lumen Retention: Even after extended use, the EX-03 series maintains 80% lumen retention, delivering consistent and bright illumination throughout its lifespan, contributing to enhanced safety and productivity in hazardous locations.
Techinical of 25w/50W Hazardous Location Led High Bay Light
| Rated Power | 25W | 50W | ||||||||||||
| Light efficacy | 152lm/W | 152lm/W | ||||||||||||
| Luminous Flux | 3800lm | 7600lm | ||||||||||||
| Fixture Weight | 4.2kgs/9.26lbs | 4.2kgs/9.26lbs | ||||||||||||
| Type of Protection | Ex db eb mb (Flameproof, Increased Safety, Encapsulation) Ex tb (Dust Protected Enclosure) |
|||||||||||||
| ATEX Classification | GroupII Category 2 GD | |||||||||||||
| Area Classification | Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 | |||||||||||||
| Certificate | EU Type Examination Certificate SGS25ATEX0006X IECEx Certificate of Conformity IECEx SGS 25 .0003X |
|||||||||||||
| Coding | Ex db eb mb IICT6...T5 Gb Ex tb IIICT80°C...T95°C Db IP66 Refer to table forTrating and Ambient |
|||||||||||||
| Enclosure | CopperfreeDie-Castinga luminum with epoxy powder coating finished(RAL 7040) | |||||||||||||
| Protective Cover | Tempered Glass/Polycarbonate | |||||||||||||
| Entry | 2 cable entries(NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Electronic Driverion | 60°,90°,140° | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Back access to gearbox lid with M5 captive screws | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc |
|||||||||||||
| Temperature Classification | T5(-40°C+60°C)/T6(-40°C+50°C) | T5(-40°C+60°C)/T6(-40°C+50°C) | ||||||||||||

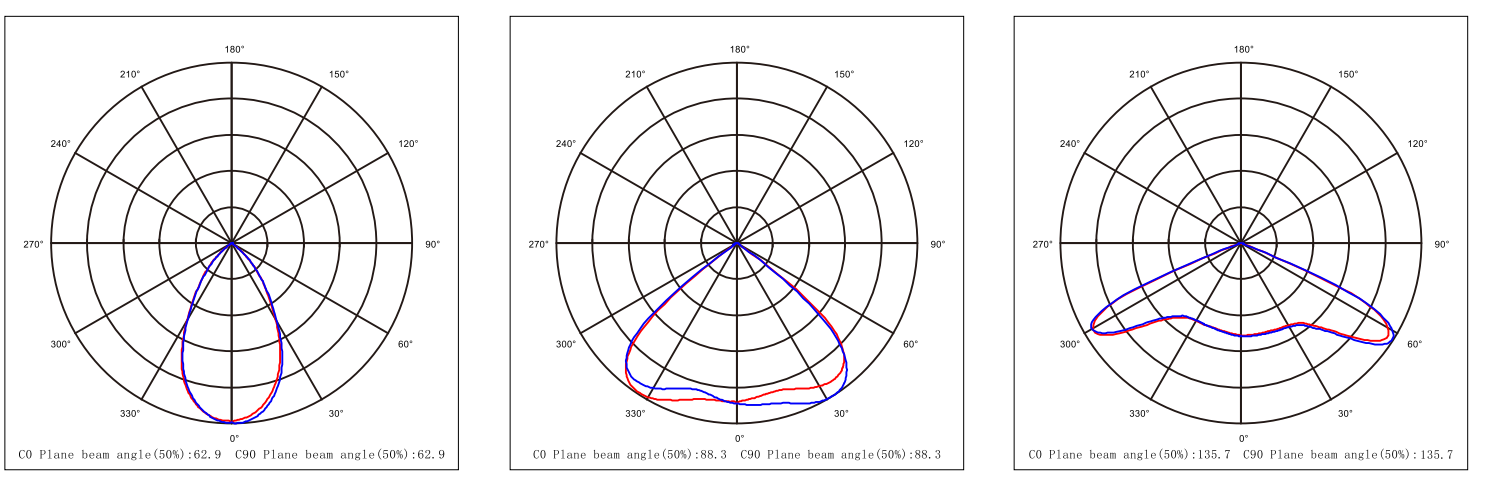

Distribution Curve

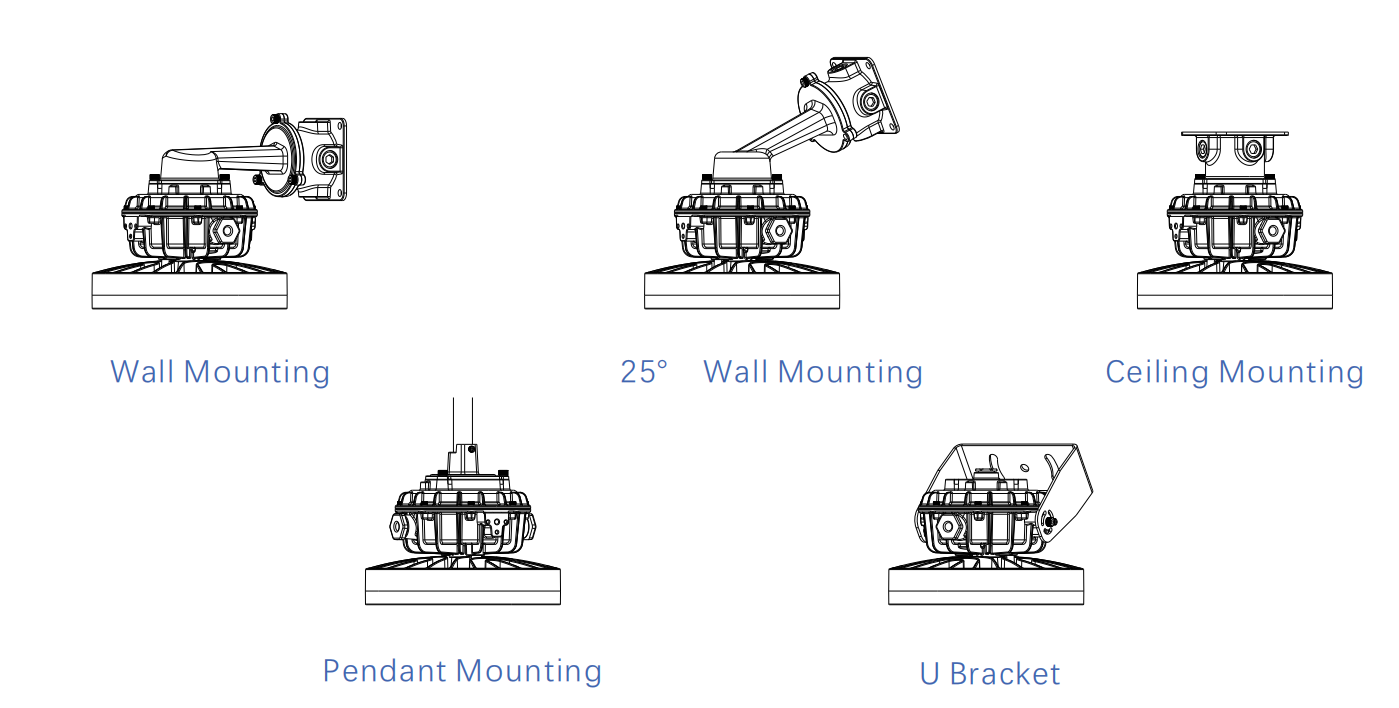

Mounting Options

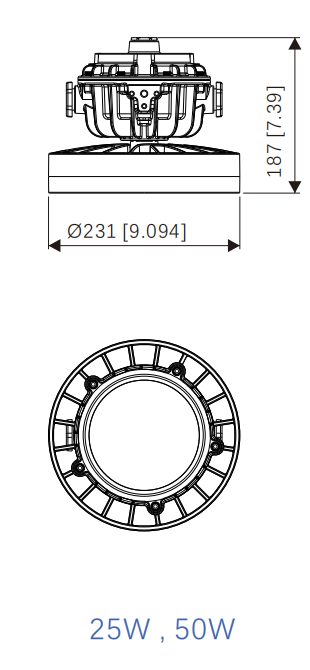

Dimension Diagram
Ordering Information
List of SKU Naming:EX03-25W-MS-E-3K-60-N3/4
| Series | Rated Power | Additional Function | Input Voltage | CCT | Beam Angle | Cable Entries | |||||||||||||
| EX03 | ‐25 = 25W | Empty = No Additional Function | - L = 12-24Vac | ‐3K = 3000K | ‐60 = 60° (Lens) | -N3/4=NPT3/4 | |||||||||||||
| ‐50 = 50W | -MS=Microwave Motion Sensor | - E = 100-240Vac | ‐4K = 4000K | ‐90 = 90° (Lens) | -G3/4=G3/4 | ||||||||||||||
| - DS = Daylight Sensor | - DCL = 12-36Vdc | ‐5K = 5000K | ‐140 = 140° (Lens) | -N1/2=NPT1/2 | |||||||||||||||
| - DM = Dimmable | - DCH = 140-250Vdc | ‐6K = 6000K | -G1/2=G1/2 | ||||||||||||||||
| -DL=DALI | -M25=M25 | ||||||||||||||||||
| - LR = LoRa | -M20=M20 | ||||||||||||||||||
| -GS = GPS | |||||||||||||||||||
Get a Quote Now for our 50W Hazardous Location LED High Bay Light—engineered for Zone 1/2 and Class I Div 1 environments with ATEX, IECEx, and UL certifications. Built for durability, high efficiency, and long service life, it’s ideal for oil & gas, chemical, and industrial applications. Contact us today for factory pricing, fast delivery, and OEM customization support.
FAQ-50W Hazardous Location Led High Bay Light
Where are the EX03 series explosion-proof high ceiling lamps suitable for installation?
This product is suitable for Zone 1/2 flammable and explosive gas environments and Zone 21/22 dust environments. It is widely used for lighting large-area high ceiling spaces such as refineries, chemical warehouses, natural gas stations, and smelting workshops.
What is the explosion-proof grade of this 50W Hazardous Location Led High Bay Light?
The explosion-proof mark is Ex d IIC T6 Gb/Ex tD A21 IP66 T80℃. It has dual explosion-proof capabilities for gas and dust, and has passed multiple international explosion-proof certifications.
What are the luminous efficacy and power options?
Provide multiple power specifications from 50W to 200W, with luminous efficacy up to 130~150 lm/W, which can replace traditional metal halide lamps, significantly reduce energy consumption and improve lighting quality.
