Installation
Hazardous areas Zone 1 / 2 (Gas) - Zone 21 / 22 (Dust)
ATEX
II 2G Ex db eb mb IIC T6...T5 Gb (Lens Type)
II 2D Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No SGS24ATEX0150X
IECEx
Ex db eb mb IIC T6...T5 Gb (Lens Type)
Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No IECEx SGS 24.0067X
Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1;
EN/IEC 60079-7; EN/IEC 60079-18;
EN/IEC 60079-31
EX4H Series from SAFER-EX is an Explosion-Proof Portable LED Work Light, which features a rubberized and insulated handle to provide a safe and secure grip. It provides operators with great convenience in the form of on - site service.
Techinical| Rated Power | 25W | 40W | |||||||||||||||||
| Light efficacy | 154lm/W | 154lm/W | |||||||||||||||||
| Luminous Flux | 3850lm | 6160lm | |||||||||||||||||
| Fixture Weight | 2.2kg | 2.2kg | |||||||||||||||||
| Type of Protection | Ex db mb (Flameproof, Encapsulation) Ex tb (Dust Protected Enclosure) | ||||||||||||||||||
| ATEX Classification | Group II Category 2 GD | ||||||||||||||||||
| Area Classification | Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 | ||||||||||||||||||
| Certificate | EU Type Examination Certificate SGS24ATEX0150X IECEx Certificate of Conformity IECEx SGS 24.0067X | ||||||||||||||||||
| Coding | Ex db mb IIC T6...T5 Gb Ex tb IIIC T80°C...T95°C Db IP66 Refer to table for T rating and Ambient | ||||||||||||||||||
| Enclosure | Copper free Die-Casting aluminum with epoxy powder coating finished (RAL 7040) | ||||||||||||||||||
| Protective Cover | Polycarbonate Tube | ||||||||||||||||||
| Termination | 3 core 6mm² max conductor with looping | ||||||||||||||||||
| Control Gear | Electronic Driver | ||||||||||||||||||
| Optical Distribution | 270° | ||||||||||||||||||
| Colour Temperature (CCT) | 3000K-6000K | ||||||||||||||||||
| Colour Rendering Index (Ra) | >80 | ||||||||||||||||||
| Impact Protection | IK08 | ||||||||||||||||||
| Ingress Protection | IP66 to EN 60529 | ||||||||||||||||||
| Surge Protection | 4KV line to line | ||||||||||||||||||
| Intelligent Functions | Dimmable for option | ||||||||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | ||||||||||||||||||
| Temperature Classification | T5(-40°C+65°C)/T6(-40°C+55°C) | T5(-40°C+65°C)/T6(-40°C+55°C) | |||||||||||||||||
Distribution Curve

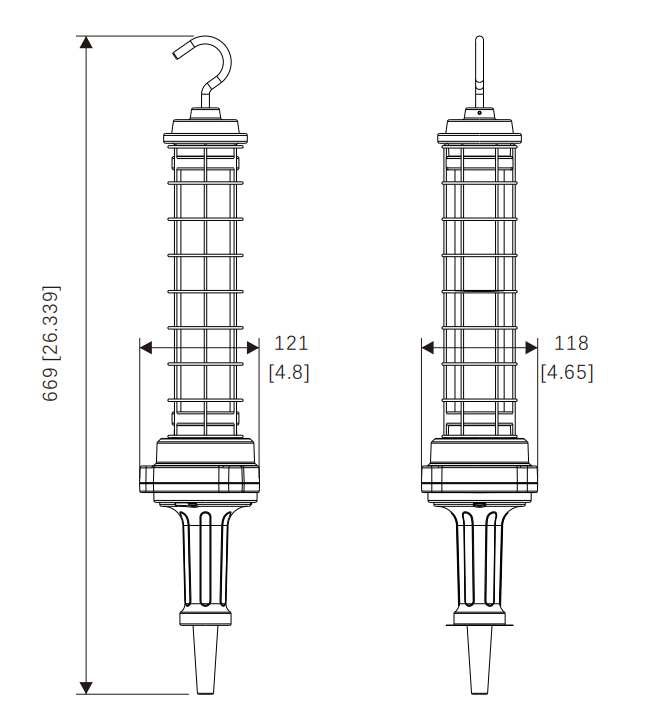

Dimension Diagram
Ordering Information
List of SKU Naming: EX04H -25E -6K -220
| Series | Power | Additional Function | Input Voltage | CCT | Beam Angle | ||||||||||||||||||
| EX04H | ‐25 = 25W | Empty = No Additional Function | L = 12-24Vac | ‐3K = 3000K | ‐270 = 270° | ||||||||||||||||||
| ‐40 = 40W | - DM = Dimmable | E = 100-240Vac | ‐4K = 4000K | ||||||||||||||||||||
| DCL = 12-36Vdc | ‐5K = 5000K | ||||||||||||||||||||||
| DCH = 140-250Vdc | ‐6K = 6000K |
