Hazardous Location LED Strobel/Singal Light Ex02B Series

Installation

Hazardous areas Zone 1 (Gas) - Zone 21 (Dust)

ATEX

II 2G Ex db eb mb IIC T6...T5 Gb

II 2D Ex tb IIIC T80°C…T95°C Db

Certificate No SGS25ATEX0007X

IECEx

Ex db eb mb IIC T6...T5 Gb

Ex tb IIIC T80°C…T95°C Db

Certificate No IECEx SGS 25.0004X

Certificate & Standard

EN/IEC 60079-0; EN/IEC 60079-1;

EN/IEC 60079-7; EN/IEC 60079-18;

EN/IEC 60079-31

E-mail:

info@safer-ex.com

Key words:

数据1 数据2 数据3 数据4

Inquire Now

Download

Next Product

Hazardous Location LED Strobel/Singal Light Ex02B Series

Product Highlight

HighlyEnergy Efficient>150lm/W

Sealed for life LED enclosure with no exposed øame paths

Easy access gearbox with captive screws

Low temperature applications to -40°C

220 degree wide beam

Techinical

Rated Power

15W

25W

Light efficacy

164lm/W

Luminous Flux

2640lm

4100lm

Fixture Weight

4.2kgs/9.26lbs

Type of Protection

Ex db eb mb (Flameproof, Increased Safety, Encapsulation)
Ex tb (Dust Protected Enclosure)

ATEX Classification

GroupII Category 2 GD

Area Classification

Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14

Certificate

EU Type Examination Certificate
SGS25ATEX0007X
IECEx Certificate of Conformity
IECEx SGS 25.0004X

Coding

Ex db eb mb IIC T6...T5 Gb
Ex tb IIIC T80°C...T95°C Db IP66
Refer to table for T rating and Ambient

Enclosure

Copper free Die-Casting aluminum with epoxy powder coating finished (RAL 7040)

Entry

4 cable entries (NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected）

Termination

3 core 6mm² max conductor with looping

Control Gear

Electronic Driver

Optical Distribution

Wide beam

Colour Temperature (CCT)

3000K-6000K，Red, Green, Blue, Amber

Colour Rendering Index (Ra)

>80

Maintenance

Front access to gearbox lid with 4 x M8 captive screws

Impact Protection

IK08

Ingress Protection

IP66 to EN 60529

Surge Protection

4KV line to line, 6KV line to earth

Intelligent Functions

Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option

Electrical Supply

12-24Vac, 100-240Vac 50/60Hz
12-36Vdc, 140-250Vdc

Temperature Classification

T5(-40°C+70°C)/T6(-40°C+65°C)

Distribution Curve

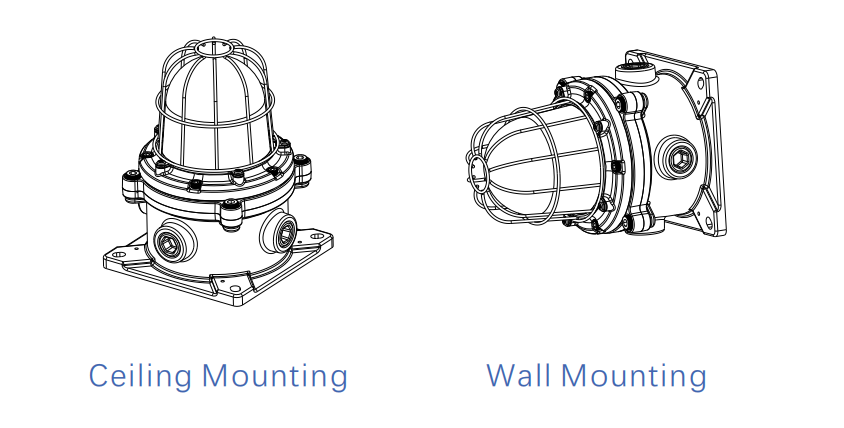

Mounting Options

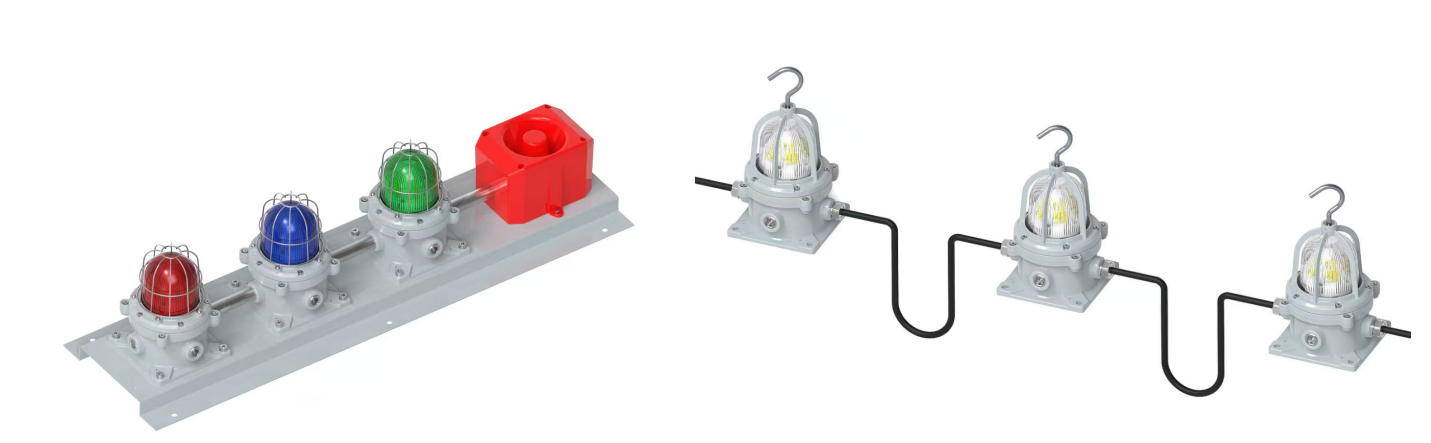

Installation method

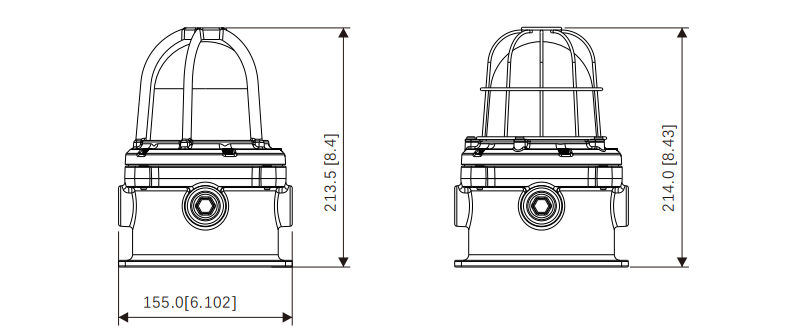

Dimension Diagram

Ordering Information

List of SKU Naming: EX02B-25W-MS-E-R-220-N3/4

Series	Rated Power	Additional Function	Input Voltage	CCT	Beam Angle	Cable Entries
EX02B	-15W =15W	-NF =No Additional Function	-L=12-24 Vac	-3K =3000K	-220 =220°	-N3/4=NPT3/4
	-25W =25W	-MS =Microwave Motion Sensor	-E=100-240 Vac	-4K =4000K		-G3/4=G3/4
EX02C	-50W =50W	-DS =Daylight Sensor	-DCL=12-36 Vdc	-5K =5000K		-N1/2=NPT1/2
		-DM =Dimmable	-DCH=140-250 Vdc	-R =Red((620-630nm)		-G1/2=G1/2
		-DL =DALI		-G =Green(520-530nm)		-M25=M25
		-LR =LoRa		-B =Blue(450-460nm)		-M20=M20
		-FS =Flash		-A =Amber(585-595nm)
		-GS =GPS		-P =Purple(415-420nm)

FAQ

Is the installation method convenient?

It supports wall mounting, bracket fixing, equipment cabinet installation, etc. It has waterproof wiring ports and aluminum alloy corrosion-resistant shell, and is suitable for harsh environments such as chemical industry, ships, and tunnels.

What are the sound decibels and strobe frequency?

The buzzer volume is as high as 95~110dB (within 1 meter), and the strobe frequency is about 60 times/minute, which can significantly improve the warning effect in high-noise and low-visibility environments.

What is the difference between the EX02B/C series explosion-proof sound and light alarm lights?

EX02B is a standard sound and light alarm light, suitable for basic hazardous area alarms; EX02C is an enhanced type with a higher protection level and stronger sound/strobe function, suitable for high noise or strong corrosion environments.

What hazardous areas are the products suitable for?

The EX02B/C series complies with Zone 1 & 2 explosive gas environments and Zone 21 & 22 dust environment standards, and is suitable for industrial scenarios of IIC gas group and T6 temperature group.

What are the optional colors?

Supports six light source colors: red, yellow, blue, green, white, and purple, to meet different industrial indication and alarm needs. Users can customize the combination according to the purpose.

What is the volume and flashing frequency of the alarm light?

The sound can reach up to 110dB (within 1 meter), and the flashing frequency is about 60 times/minute. The warning effect is strong and suitable for dangerous workplaces with limited vision and hearing.

What installation methods are supported?

The lamp adopts an aluminum alloy anti-corrosion shell and supports multiple installation methods such as wall mounting, bracket mounting, and pipe mounting. Wiring holes are reserved for easy and quick deployment.

Does the EX02B/C series support intelligent control modules?

Yes, some models can be equipped with intelligent control modules, which support access to industrial communication protocols such as DALI, RS485, Modbus, etc., to achieve remote control, group management, status feedback and other functions, and adapt to smart factories or centralized control systems.

What is the module power supply method? Is additional wiring required?

The intelligent module relies on the main power supply (AC/DC optional), and the communication signal can share the signal bus to avoid redundant wiring, save layout costs, and facilitate installation and maintenance.
