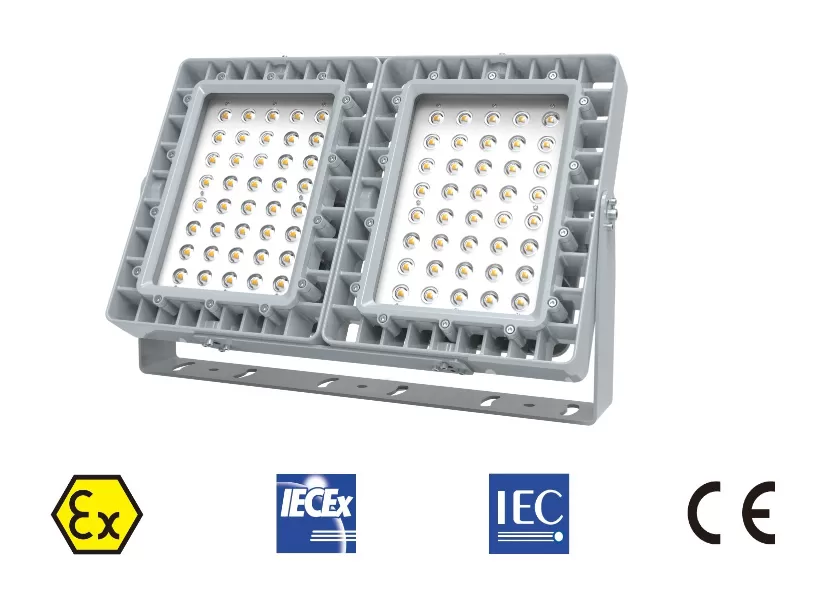

Explosion-proof LED Floodlight EX05 Series 300W/400W
Installation
Hazardous areas Zone 1 (Gas) - Zone 21 (Dust)
ATEX
II 2G Ex db eb mb IIC T6...T5 Gb (Lens Type)
II 2D Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No SGS25ATEX0006X
IECEx
Ex db eb mb IIC T6...T5 Gb (Lens Type)
Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No IECEx SGS 25 .0003X
Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7
EN/IEC 60079-18; EN/IEC 60079-31.
E-mail:
Key words:
Product Highlight
Powerful Illumination: The EX05 series explosion-proof LED flood lights by SAFER-Ex provide robust lighting, ensuring excellent visibility in hazardous environments.
Heavy-Duty Housing: With a sturdy construction, these lights feature heavy-duty housing, offering durability and reliability in industrial settings.
Energy Efficiency: Designed with energy-efficient technology, the EX05 series flood lights deliver powerful lighting while minimizing energy consumption, reducing operational costs.
Solid-State Design: The solid-state design enhances the durability of these lights, making them resistant to vibration and impact, ensuring long-term performance in demanding conditions.
Safety Compliance: Engineered for hazardous locations, the EX05 series meets stringent safety standards, providing peace of mind in environments where safety is paramount.
Techinical
| Rated Power | 300W | 400W | ||||||||||||
| Light efficacy | 151lm/W | 151lm/W | ||||||||||||
| Luminous Flux | 45300lm | 60400lm | ||||||||||||
| Fixture Weight | 21.9kgs/48.28lbs | 23.3kgs/51.37lbs | ||||||||||||
| Type of Protection | Exdbebmb(Flameproof,IncreasedSafety,Encapsulation) Extb(DustProtectedEnclosure) |
|||||||||||||
| ATEX Classification | GroupII Category 2 GD | |||||||||||||
| Certificate | EU Type Examination Certificate SGS25ATEX0006X IECEx Certificate of Conformity IECExSGS25 .0003X |
|||||||||||||
| Coding | Ex db eb mb IICT6...T5 Gb Ex tb IIICT80°C...T95°CDbIP66 Refer to table forTrating and Ambient |
|||||||||||||
| Enclosure | CopperfreeDie-Castinga luminum with epoxy powder coating finished(RAL 7040) | |||||||||||||
| Protective Cover | Tempered Glass/Polycarbonate | |||||||||||||
| Entry | 2 cable entries(NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Electronic Driverion | 60°,90°,140° | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Back access to gearbox lid with M5 captive screws | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc |
|||||||||||||
| Temperature Classification | T5(-40°C+55°C)/T6(-40°C+40°C) | T5(-40°C+55°C)/T6(-40°C+40°C) | ||||||||||||
Have questions about parameters, formats, or bulk pricing? Contact us now to receive personalized support and a detailed quotation.

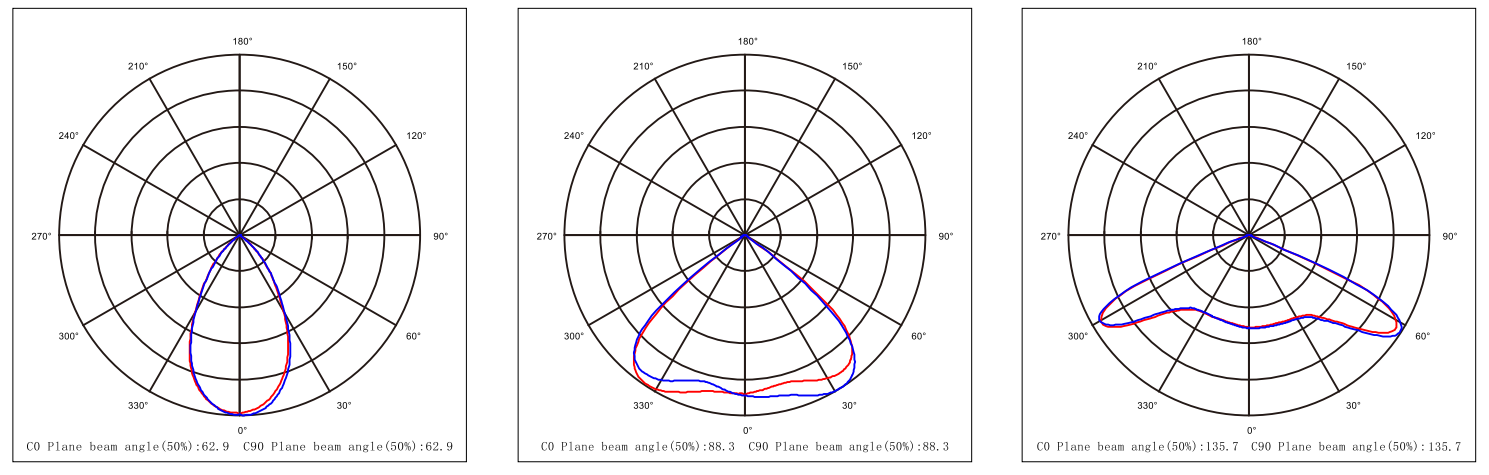

Distribution Curve

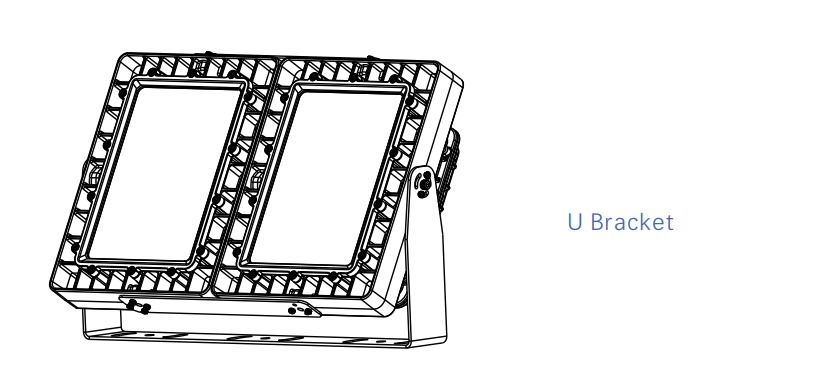

Mounting Options

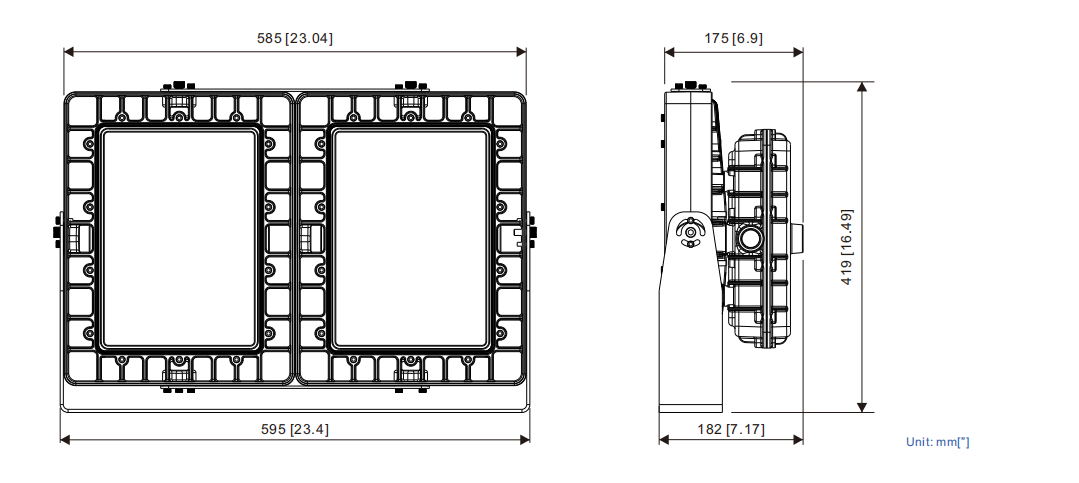

Dimension Diagram
Unit: mm [ '' ]
Ordering Information
List of SKU Naming: EX05 -300W -4K -140
| Series | Rated Power | Additional Function Input Voltage |
Input Voltage | CCT | Beam Angle | Cable Entries | |||||||||||||||||||||||||||||
| EX05 | ‐300 = 300W | Empty = No Additional Function | L = 12-24Vac | ‐3K = 3000K | - 60 = 60° | N3/4 =NPT3/4 | |||||||||||||||||||||||||||||
| ‐400 = 400W | -MS = Microwave Motion Sensor | E = 100-240Vac | ‐4K = 4000K | - 90 = 90° | G3/4 = G3/4 | ||||||||||||||||||||||||||||||
| -DS=Daylight Sensor | DCL = 12-36Vdc | ‐5K = 5000K | - 140 = 140° | N1/2 =NPT1/2 | |||||||||||||||||||||||||||||||
| -DM=Dimmable | DCH= 140-250Vdc | ‐6K = 6000K | G1/2 = G1/2 | ||||||||||||||||||||||||||||||||
| -DL=DALI | M25 = M25 | ||||||||||||||||||||||||||||||||||
| - LR = LoRa | M20 = M20 | ||||||||||||||||||||||||||||||||||
| - GS = GPS | |||||||||||||||||||||||||||||||||||
The EX05 Series Explosion-proof LED Floodlight is engineered to deliver exceptional performance and safety in the most demanding hazardous environments. Designed for Zone 1 / Zone 2 (Gas) and Zone 21 / Zone 22 (Dust) hazardous areas, this high-power floodlight is ideal for oil & gas facilities, petrochemical plants, mining sites, and grain processing areas where explosive atmospheres are a risk.
Whether you're upgrading lighting systems in refineries, chemical storage facilities, or grain silos, the EX05 Series provides uncompromising safety, efficiency, and reliability. Contact us today to discuss technical details, receive a quotation, or request a custom lighting solution.
FAQ
Is the installation method flexible?
It supports wall mounting, ceiling mounting, pole mounting, etc., and can be equipped with U-shaped brackets or rotating brackets to adapt to various installation sites, which is convenient for replacing old lamps or building new projects.
Does the lamp support intelligent control?
Some models support DALI, 0-10V dimming or remote control systems, which are suitable for energy-saving renovation projects and remote lighting management.
