Installation
Hazardous areas Zone 2 (Gas) - Zone 21 / 22 (Dust)
ATEX
II 3G Ex eb ec mb IIC T6...T5 Gc
II 2D Ex tb IIIC T80°C…T95°C Db
Certificate No. SGS24ATEX0150X (2D)
Certificate No. SGS24ATEX0153X (3G)
IECEx
Ex eb ec mb IIC T6...T5 Gc
Ex tb IIIC T80°C…T95°C Db
Certificate No. IECEx SGS 24.0067X
Certificate & Standard
EN/IEC 60079-0 ; EN/IEC60079-7
EN/IEC 60079-18 ; EN/IEC 60079-31

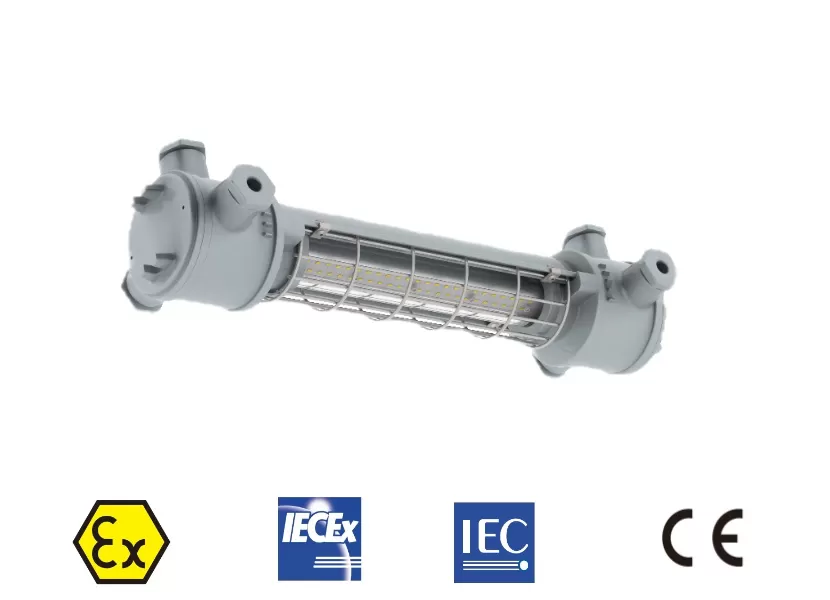

This explosion-proof Linear Light from SAFER-Ex provides 3300lm high quality light while only consuming 20 watts. Measuring only 5" in width and lightweight, EX04 is one of the lowest-profile explosion-proof light fixtures on the market; It is an ideal choice for applications with limited space where low profile fixtures are required.
The LED assembly is protected behind a tempered borosilicate glass tube that is protected by a steel wire guard to prevent accidental damage to the light fixture.
| Rated Power | 20W | 40W | 80W | |||||||||||
| Light efficacy | 165lm/W | 165lm/W | 165lm/W | |||||||||||
| Luminous Flux | 3300lm | 6760m | 13200lm | |||||||||||
| Fixture Weight | 3kg | 3.7kg | 7kg | |||||||||||
| Type of Protection | Ex db eb mb (Flameproof, Increased Safety, Encapsulation) Ex tb (Dust Protected Enclosure) | |||||||||||||
| ATEX Classification | Group II Category 3G 2D | |||||||||||||
| Area Classification | Zone 2 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 | |||||||||||||
| Certificate | EU Type Examination Certificate SGS24ATEX0150X （2D） SGS24ATEX0153X （3G） IECEx Certificate of Conformity IECEx SGS 24.0067X | |||||||||||||
| Coding | Ex db eb mb IIC T6...T5 Gb Ex tb IIIC T80°C...T95°C Db IP66 Refer to table for T rating and Ambient | |||||||||||||
| Enclosure | Copper free Die-Casting aluminum with epoxy powder coating finished (RAL 7040) | |||||||||||||
| Protective Cover | Borosilicate Glass Tube | |||||||||||||
| Entry | 6 cable entries (NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Optical Distribution | 120° | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K， | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Both sides have direct access to the gearbox lid by rotating threads | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | |||||||||||||
| Temperature Classification | T5(-40°C+65°C)/T6(-40°C+50°C) | T5(-40°C+70°C)/T6(-40°C+55°C) | T5(-40°C+60°C)/T6(-40°C+45°C) | |||||||||||

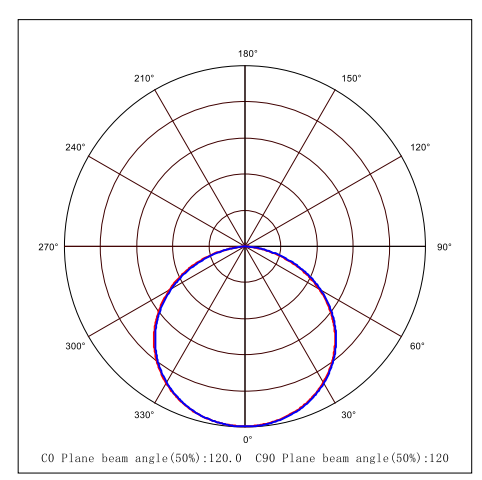

Distribution Curve

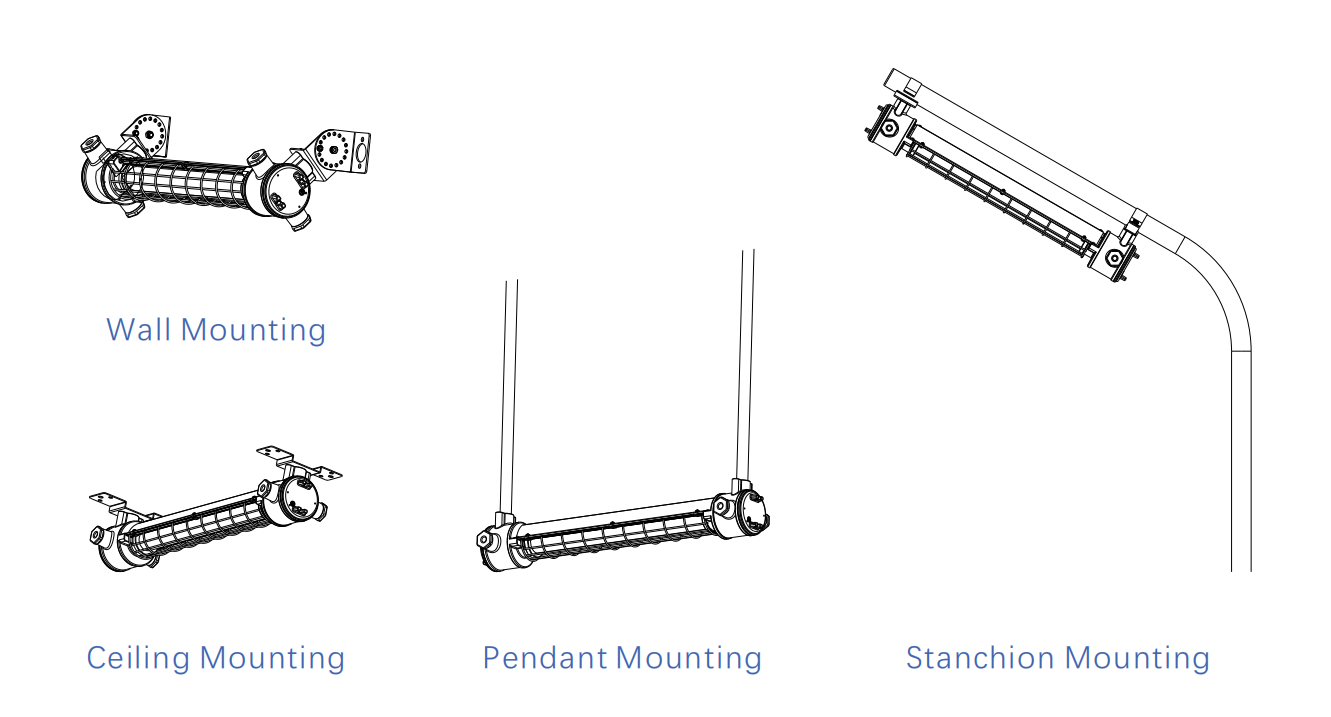

Mounting Options

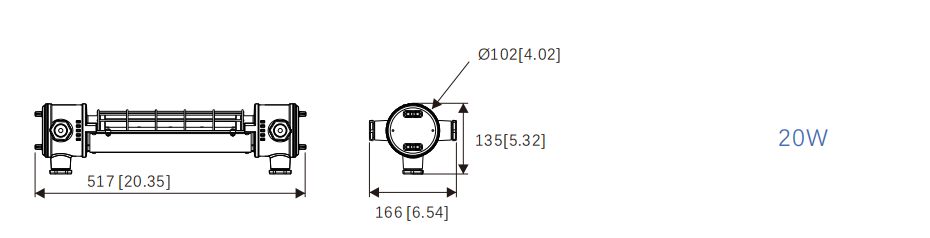

Dimension Diagram
Ordering Information
List of SKU Naming: EX04-20W-MS-E-3K-60-N3/4
| Series | Rated Power | Additional Function | Input Voltage | CCT | Beam Angle | Cable Entries | ||||||||||||
| EX04 | -20WWL = 20W | -Empty = No Additional Function | -L = 12-24Vac | ‐3K = 3000K | ‐120 = 120° (Lens) | -N3/4=NPT3/4 | ||||||||||||
| -40WWL = 40W | -MS=Microwave Motion Sensor | -E = 100-240Vac | ‐4K = 4000K | -G3/4=G3/4 | ||||||||||||||
| -80WWL = 80W | - DS = Daylight Sensor | - DCL = 12-36Vdc | ‐5K = 5000K | -N1/2=NPT1/2 | ||||||||||||||
| - DM = Dimmable | - DCH = 140-250Vdc | ‐6K = 6000K | -G1/2=G1/2 | |||||||||||||||
| -DL=DALI | -M25=M25 | |||||||||||||||||
| - LR = LoRa | -M20=M20 | |||||||||||||||||
| -GS = GPS | ||||||||||||||||||
