Installation
Hazardous areas Zone 1 / 2 (Gas) - Zone 21 / 22 (Dust)
ATEX
II 2G Ex db eb mb IIC T6...T5 Gb (Lens Type)
II 2D Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No SGS25ATEX0003X
IECEx
Ex db eb mb IIC T6...T5 Gb (Lens Type)
Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No IECEx SGS 25 .0003X
Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7
EN/IEC 60079-18; EN/IEC 60079-31.

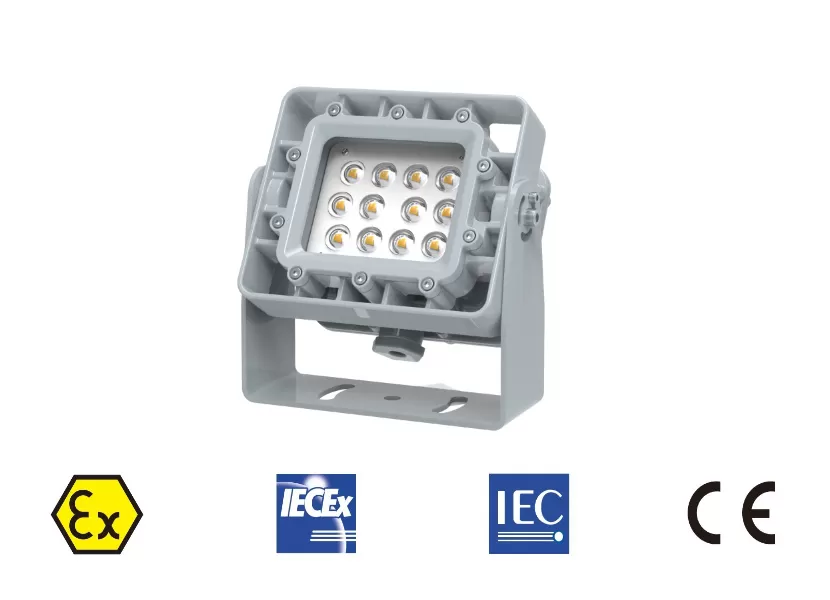

Robust Construction: SAFER-Ex's EX05 series explosion-proof LED floodlights feature a heavy-duty housing designed to withstand the rigors of hazardous environments, ensuring long-lasting durability.
Solid-State Design: With a solid-state design, these lights offer exceptional resistance to vibration and impact, providing reliable performance even in the most demanding conditions.
Energy Efficiency: The use of energy-efficient LED technology in the EX05 series ensures reduced power consumption, helping businesses save on operational costs while maintaining high-quality illumination.
Safety Compliance: Each light in the EX05 series is meticulously designed to meet stringent safety standards for hazardous locations, providing peace of mind for operators and workers.
Versatile Applications: Whether it's in chemical plants, oil fields, or other hazardous settings, SAFER-Ex's EX05 series explosion-proof LED floodlights offer versatile lighting solutions for a variety of industrial applications.
| Rated Power | 25W | 50W | ||||||||||||
| Light efficacy | 141lm/W | 141lm/W | ||||||||||||
| Luminous Flux | 3525lm | 7050lm | ||||||||||||
| Fixture Weight | 3.6kg | 3.6kg | ||||||||||||
| Type of Protection | Exdbebmb(Flameproof,IncreasedSafety,Encapsulation) Extb(DustProtectedEnclosure) | |||||||||||||
| ATEX Classification | GroupII Category 2 GD | |||||||||||||
| Certificate | EU Type Examination Certificate SGS25ATEX0006X IECEx Certificate of Conformity IECExSGS25 .0003X | |||||||||||||
| Coding | Ex db eb mb IICT6...T5 Gb Ex tb IIICT80°C...T95°C Db IP66 Refer to table forTrating and Ambient | |||||||||||||
| Enclosure | CopperfreeDie-Castinga luminum with epoxy powder coating finished(RAL 7040) | |||||||||||||
| Protective Cover | Tempered Glass/Polycarbonate | |||||||||||||
| Entry | 2 cable entries(NPT3/4 ,G3/4,NPT1/2,G1/2,M20,M25 can be selected） | |||||||||||||
| Termination | 3 core 6mm² max conductor with looping | |||||||||||||
| Control Gear | Electronic Driver | |||||||||||||
| Electronic Driverion | 60°,90°,140° | |||||||||||||
| Colour Temperature (CCT) | 3000K-6000K | |||||||||||||
| Colour Rendering Index (Ra) | >80 | |||||||||||||
| Maintenance | Back access to gearbox lid with M5 captive screws | |||||||||||||
| Impact Protection | IK08 | |||||||||||||
| Ingress Protection | IP66 to EN 60529 | |||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||
| Intelligent Functions | Microwave Motion Sensor, Daylight Sensor, Dimmable, 1Hz Flash, Battery Backup, DALI , LoRa, GPS for option | |||||||||||||
| Electrical Supply | 12-24Vac, 100-240Vac 50/60Hz 12-36Vdc, 140-250Vdc | |||||||||||||
| Temperature Classification | T5(-40°C+55°C)/T6(-40°C+40°C) | T5(-40°C+55°C)/T6(-40°C+40°C) | ||||||||||||

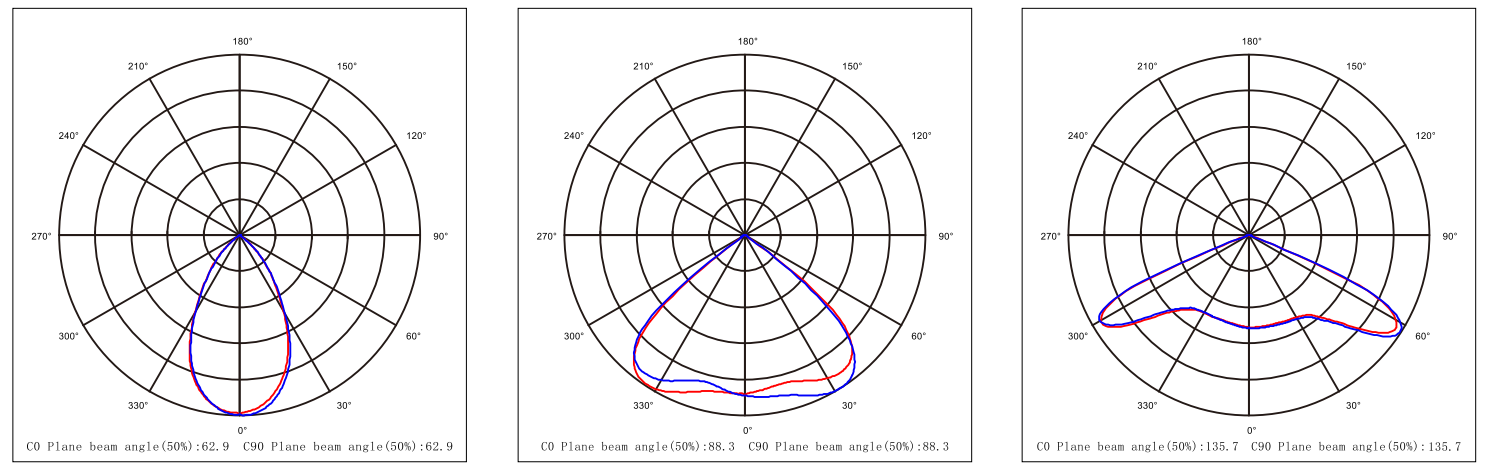

Distribution Curve

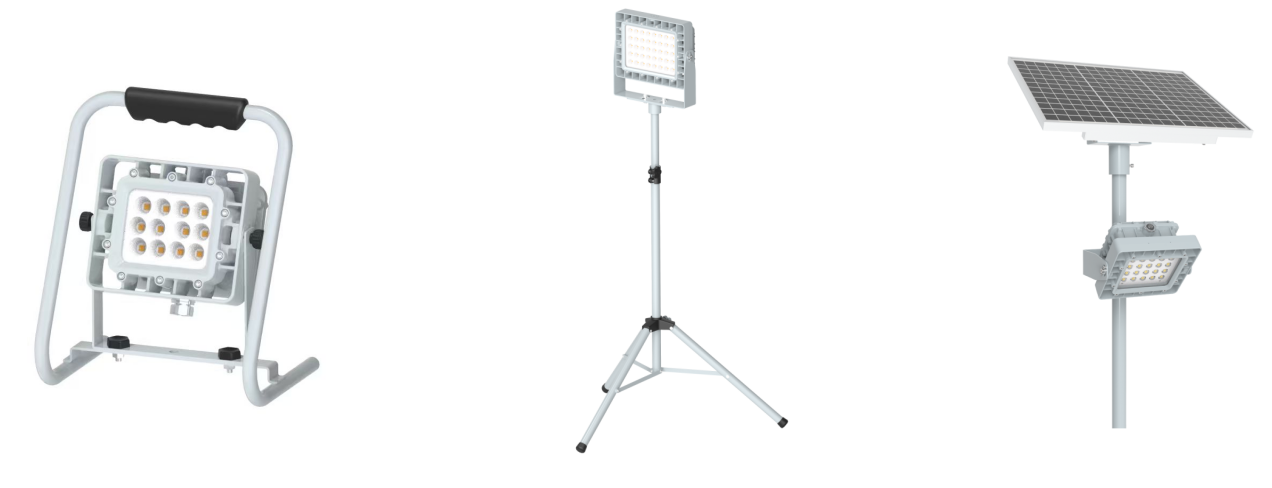

Mounting Options
Dimension Diagram
Ordering Information
List of SKU Naming:EX05-25W-MS-E-3K-60-N3/4
| Series | Rated Power | Additional Function Input Voltage | Input Voltage | CCT | Beam Angle | Cable Entries | |||||||||||||||||||||||||||||
| EX05 | ‐25W = 25W | Empty = No Additional Function | L = 12-24Vac | ‐3K = 3000K | - 60 = 60° | N3/4 =NPT3/4 | |||||||||||||||||||||||||||||
| ‐50W = 50W | -MS = Microwave Motion Sensor | E = 100-240Vac | ‐4K = 4000K | - 90 = 90° | G3/4 = G3/4 | ||||||||||||||||||||||||||||||
| -DS=Daylight Sensor | DCL = 12-36Vdc | ‐5K = 5000K | - 140 =140° | N1/2 =NPT1/2 | |||||||||||||||||||||||||||||||
| -DM=Dimmable | DCH= 140-250Vdc | ‐6K = 6000K | G1/2 = G1/2 | ||||||||||||||||||||||||||||||||
| -DL=DALI | M25 = M25 | ||||||||||||||||||||||||||||||||||
| - LR = LoRa | M20 = M20 | ||||||||||||||||||||||||||||||||||
| - GS = GPS | |||||||||||||||||||||||||||||||||||
What are the highlights of the EX05 series explosion-proof floodlights?
This series uses high-efficiency LED modules and large-area heat sink design, with excellent lighting performance and heat dissipation capabilities, suitable for floodlighting needs in large oil and gas, chemical, ports and other places.
In what hazardous environments can it be used?
EX05 supports Zone 1 & Zone 2 (gas environment), and Zone 21 & Zone 22 (dust environment), meeting the IIC gas group and T6/T5 temperature group explosion-proof standards.
